Overview
This transformer is designed to convert 3-phase 208v to 3-phase 380 Y 219 to run equipment such as panels, motors, CNC machines, welders, conveyor systems, pumps, printing equipment, fabrication tools, and other business machines.
Not sure what to buy? Find out more about how to buy the right transformer.
Primary Voltage: 208 Delta
Secondary Voltage: 380 Y 219
Transformer Specifications:
- 60 Hz Frequency
- 150°C Temperature Rise
- Primary Adjustment Taps 2 above, 4 below in 2.5% increments

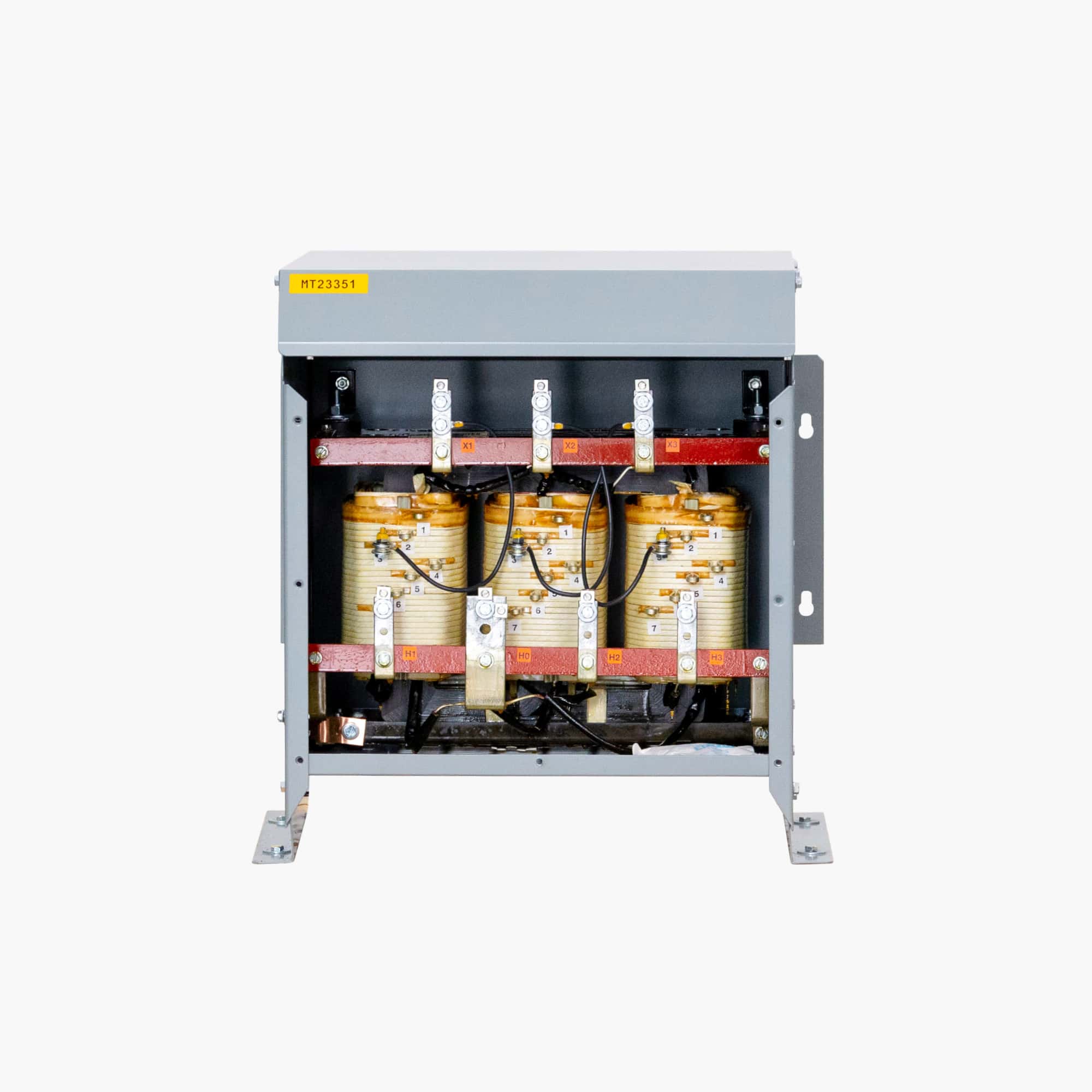

- High Efficiency Aluminum Windings
- 220°C Insulation Class
- DOE 2016 Energy Efficient

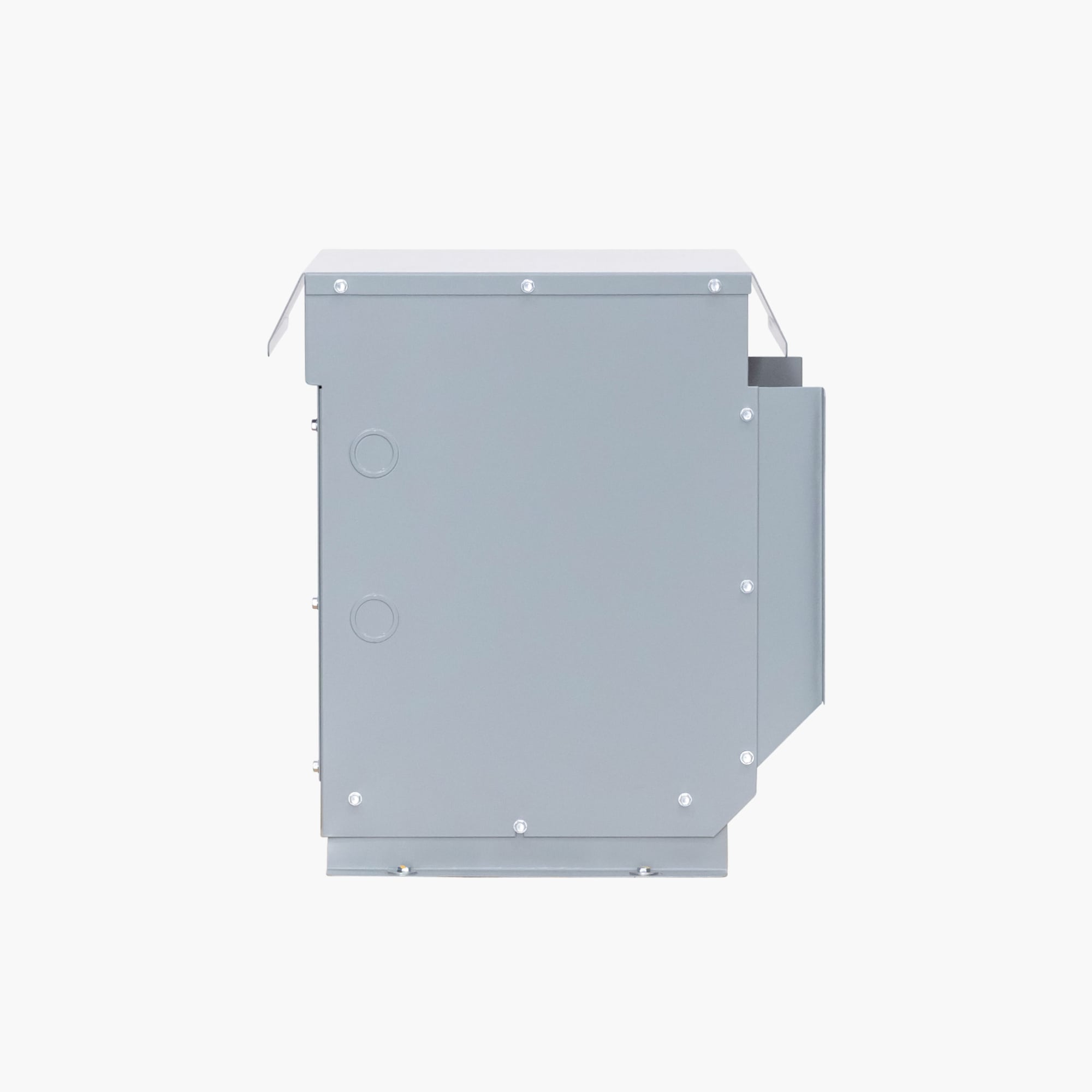

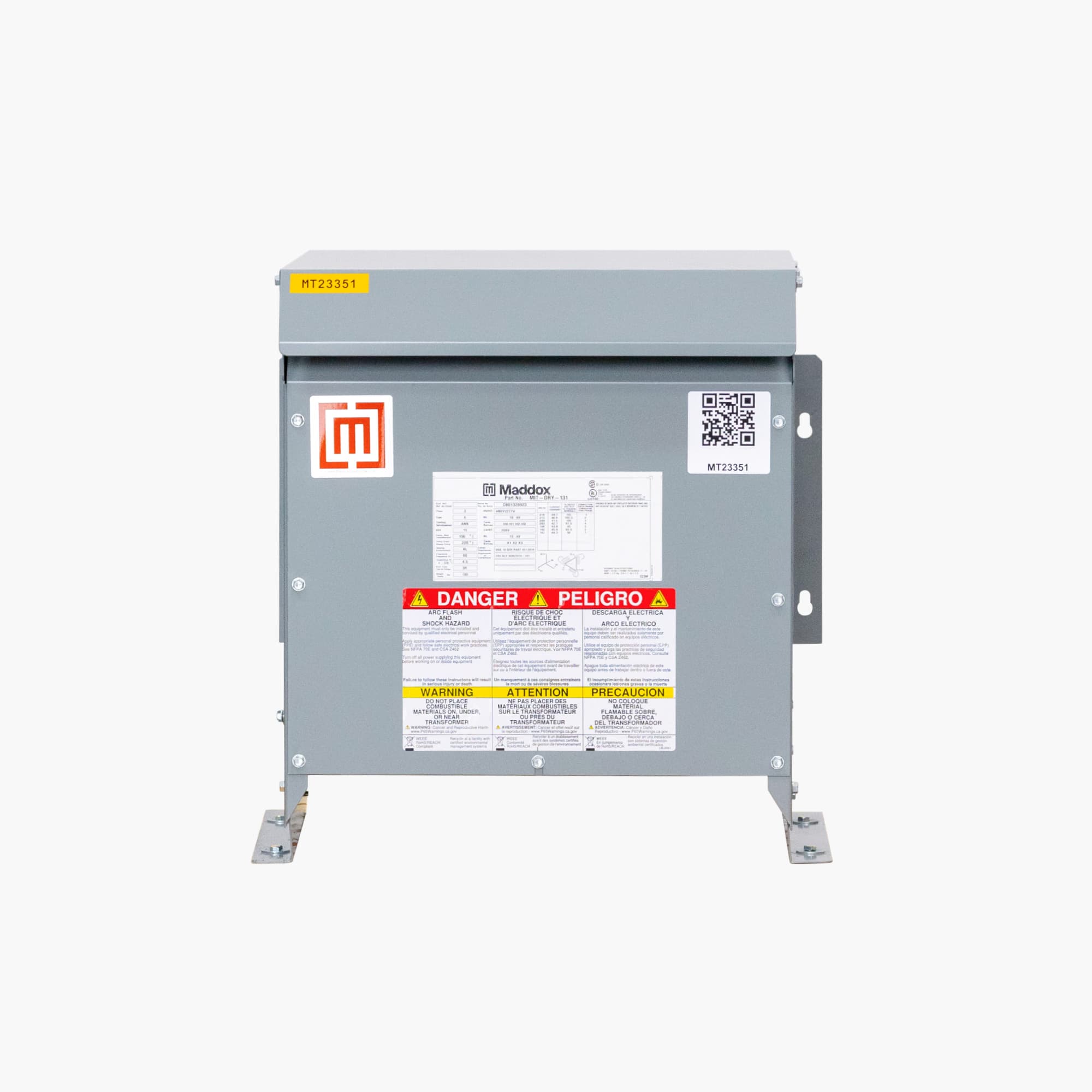

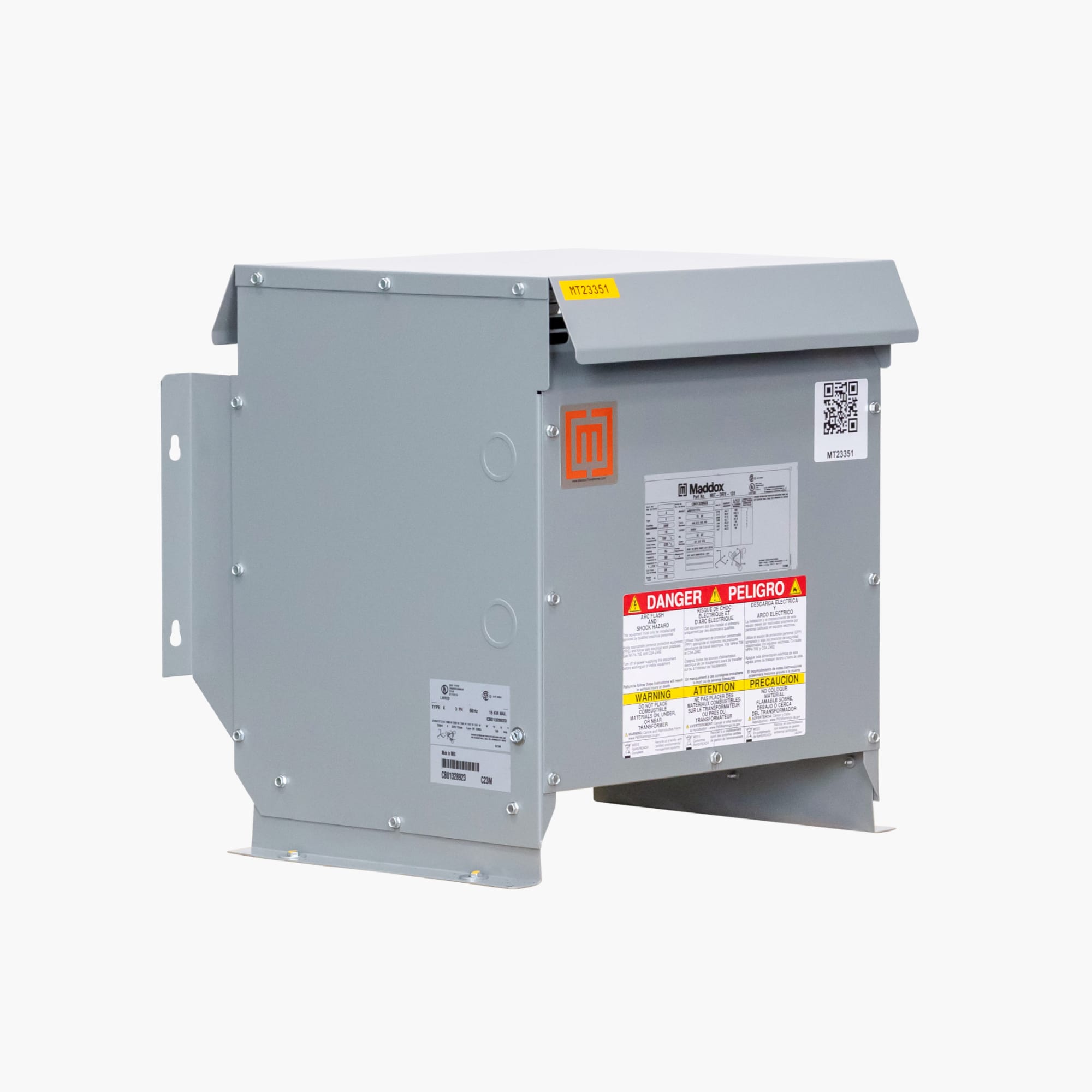

Transformer may appear different than pictured.

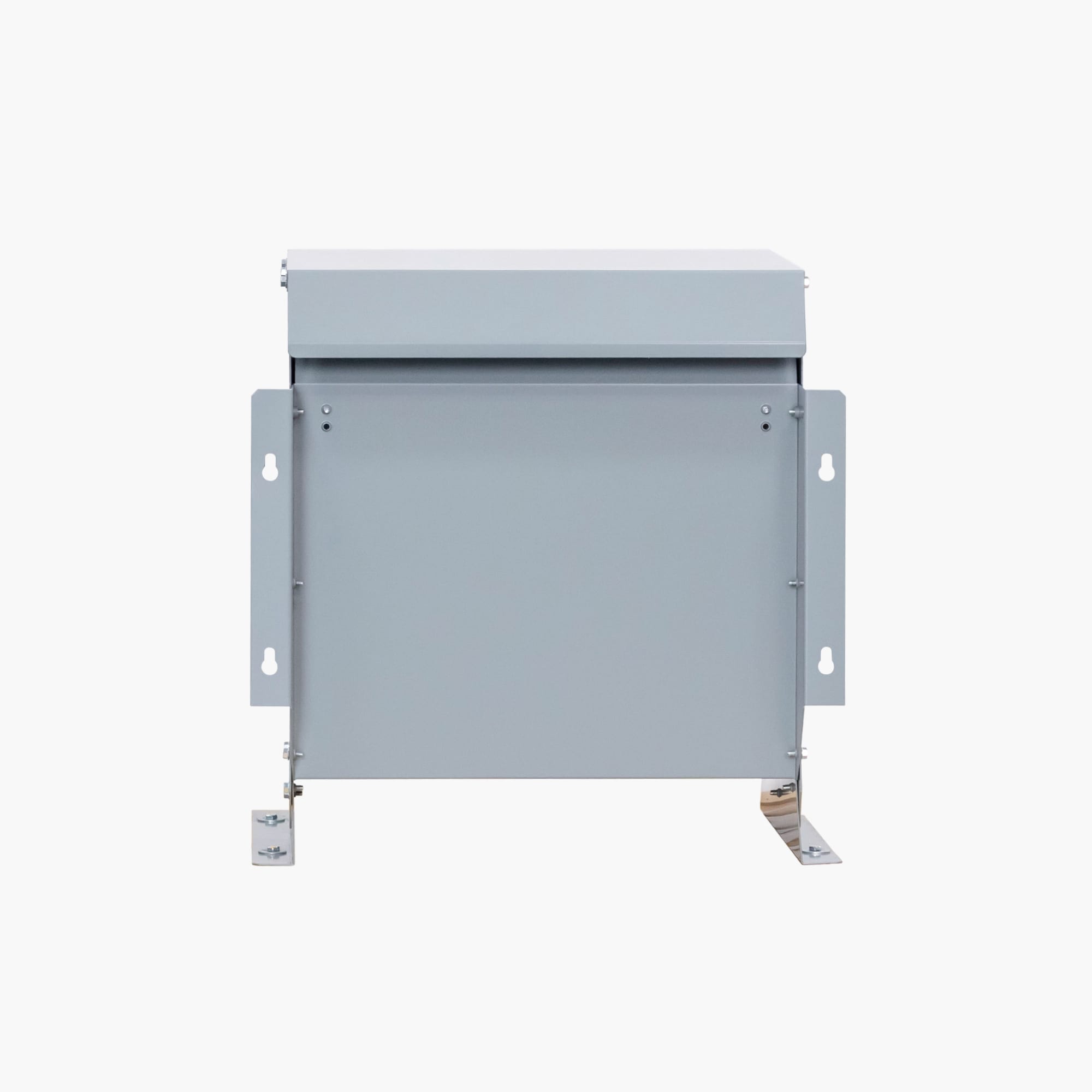

Wall brackets are not included with every model. Contact us if these are required.
Size Guide
| kVA | Amps at 208V | Amps at 380 Y 219 |
|---|---|---|
| 15 | 42 | 23 |
| 30 | 83 | 46 |
| 45 | 125 | 68 |
| 75 | 208 | 114 |
| 112.5 | 312 | 171 |
| 150 | 416 | 228 |
| 225 | 625 | 342 |
| 300 | 833 | 456 |
| 500 | 1388 | 760 |
Dimensions & Weights
| kVA | Dimensions (HxWxD) | Weight (lbs) |
| 15 | 28″x21″x14″ | 220 |
| 30 | 32″x27″x17″ | 320 |
| 45 | 32″x27″x17″ | 385 |
| 75 | 39″x29″x20″ | 565 |
| 112.5 | 41″x32″x22″ | 725 |
| 150 | 41″x32″x22″ | 860 |
| 225 | 52″x41″x25″ | 1465 |
| 300 | 52″x41″x36″ | 1600 |
| 500 | 66″x51″x41″ | 2900 |
Approximate Enclosure Dimensions & Weights
