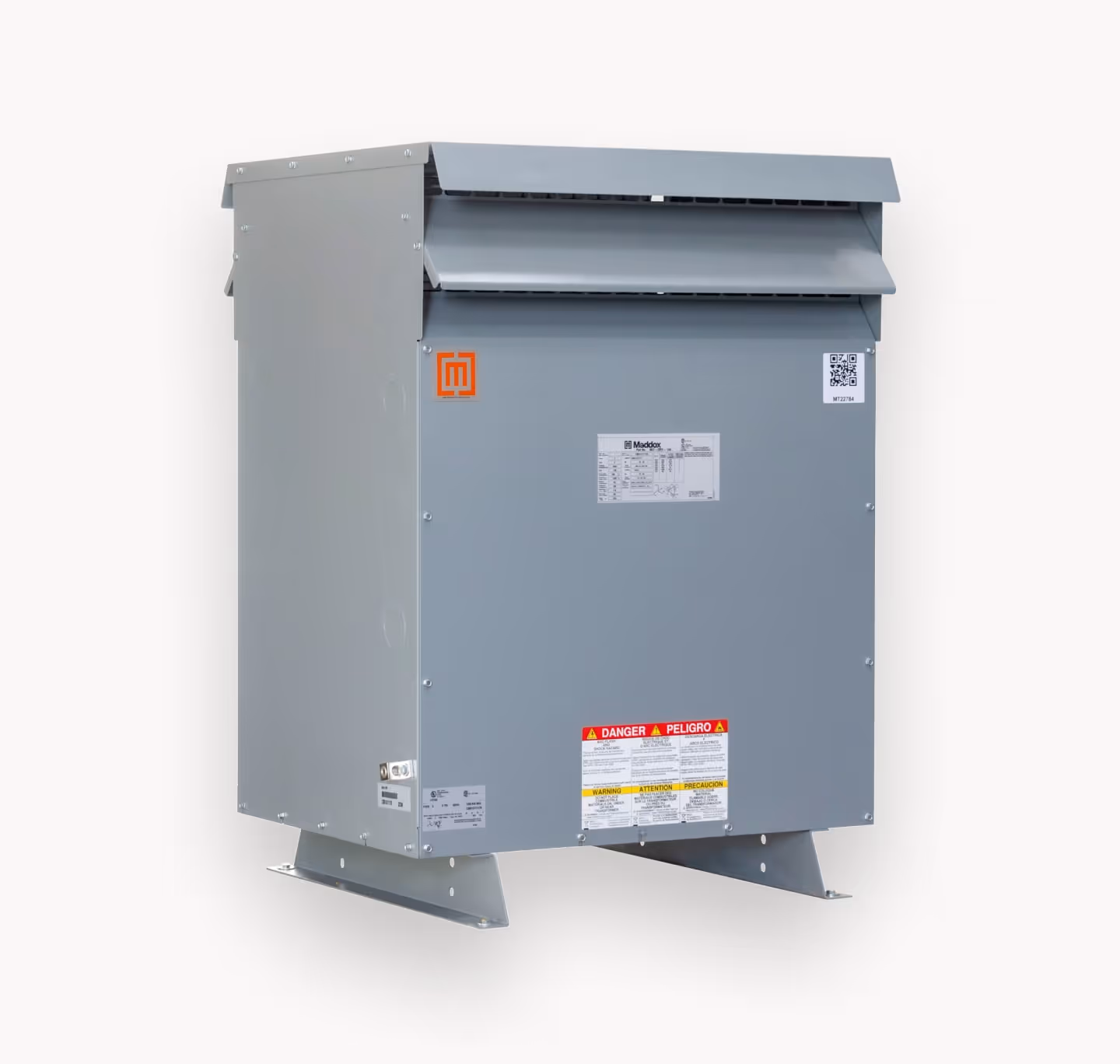

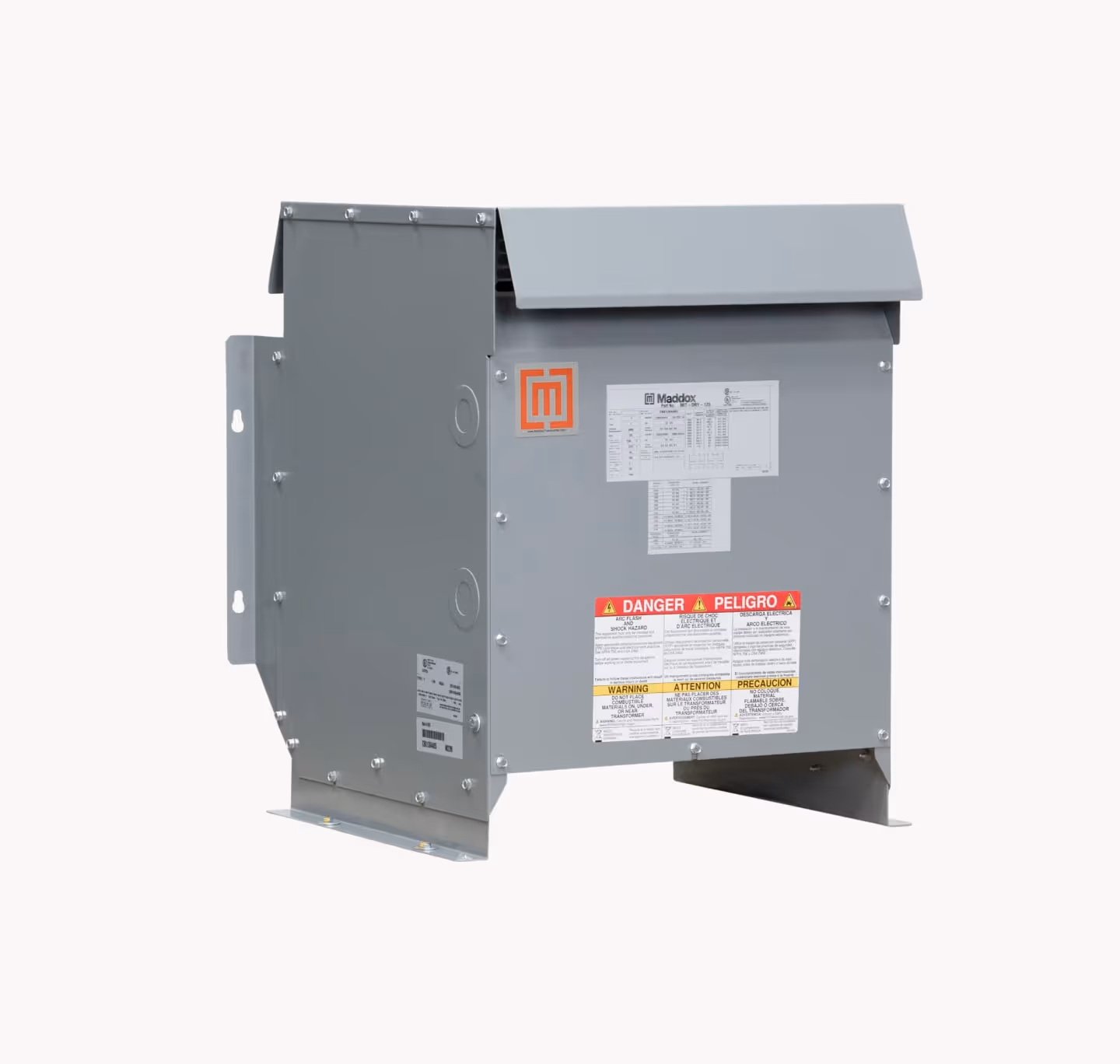

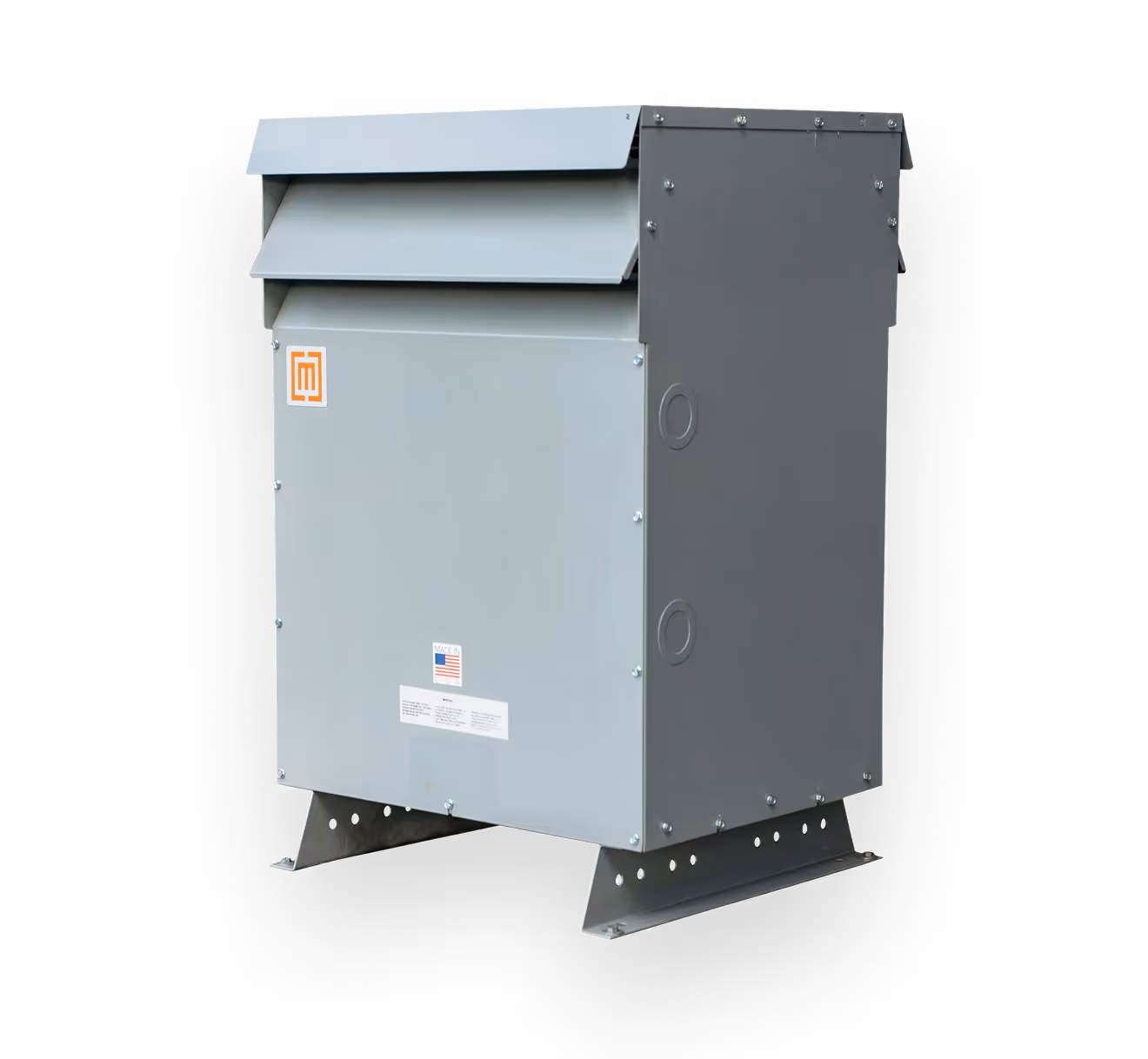

Low Voltage Dry-Type Transformers

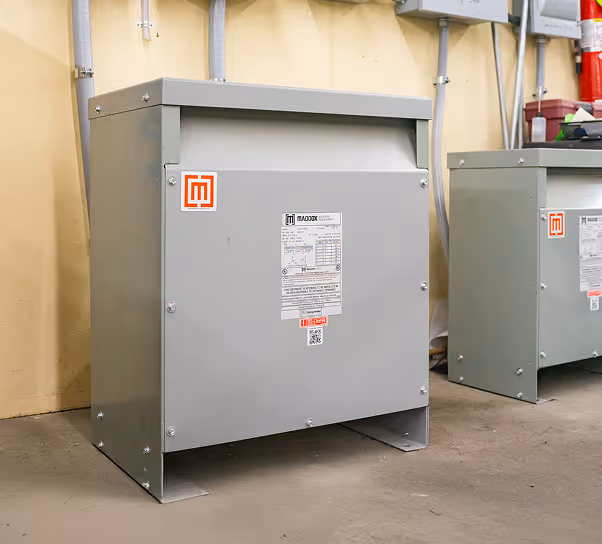

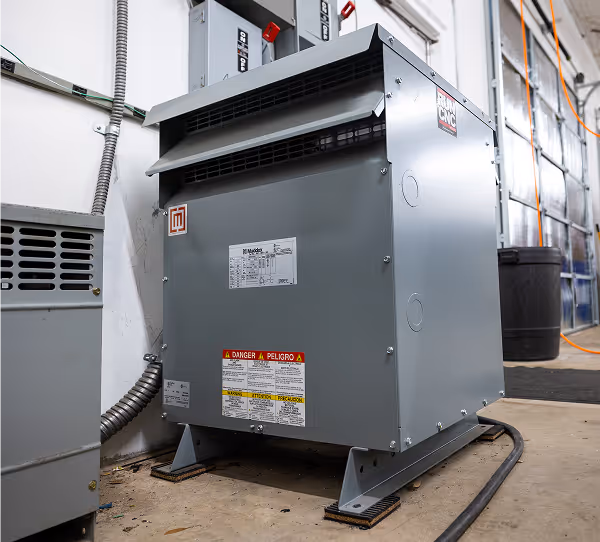

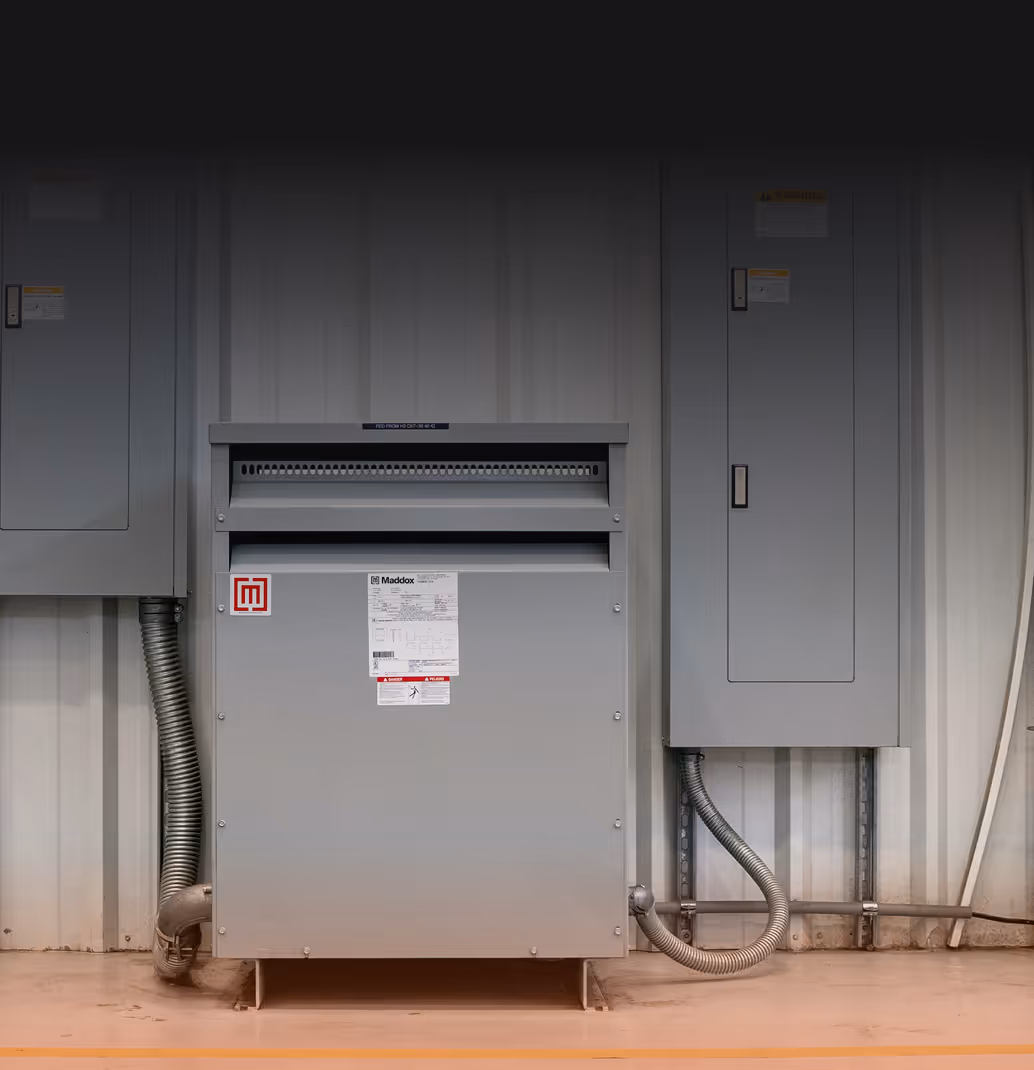

Dry-type transformers are usually best for indoor applications, commercial buildings, hospitals, and data centers where fire safety and environmental concerns are important. Oil-filled transformers are typically used outdoors or in higher-capacity applications requiring better heat dissipation. Dry-type units eliminate fluid leakage risk and reduce environmental compliance requirements.

Dry-type transformers are sized based on the electrical load they will serve. First, calculate the total connected load in amperes, then select a transformer with a kVA rating that meets or exceeds that demand while allowing capacity for future growth.

The required transformer size can be calculated using these formulas:

Single-phase: kVA = (Volts × Amps) ÷ 1,000
Three-phase: kVA = (1.732 × Volts × Amps) ÷ 1,000

When sizing a transformer, engineers also consider factors such as continuous versus intermittent loading, motor starting currents, ambient temperature, altitude, and future load expansion. Proper sizing helps ensure reliable operation, minimizes energy losses, and maximizes transformer service life.

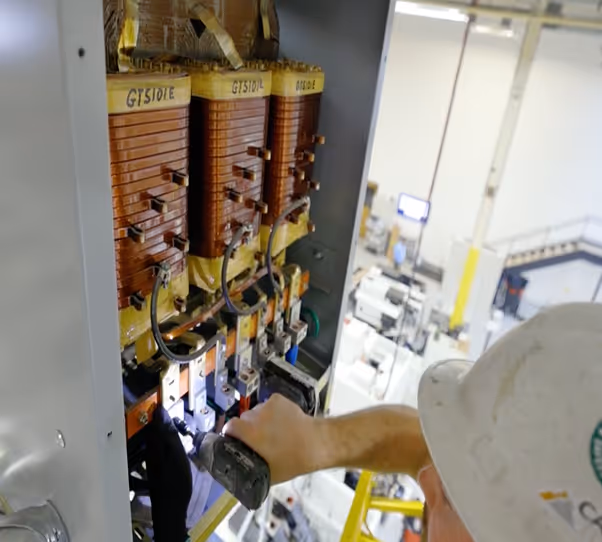

Yes, regular maintenance is recommended for dry-type transformers. Routine inspections typically include checking for dust buildup, ensuring proper ventilation, and verifying electrical connections. Because they do not use oil, there is no need for fluid testing or leak management, which can significantly reduce long-term maintenance costs.

A well-maintained dry-type transformer typically lasts 20 to 30 years or more. Lifespan depends on load conditions, ambient temperature, insulation class, and maintenance practices. Operating within rated capacity and ensuring proper ventilation significantly extends service life while maintaining efficiency and electrical reliability.

Dry-type transformers are designed to operate within specific temperature rise limits, typically 80°C, 115°C, or 150°C depending on insulation class. Staying within these limits ensures safe operation and prevents insulation degradation. Proper ventilation and load management are critical to maintaining safe operating temperatures.

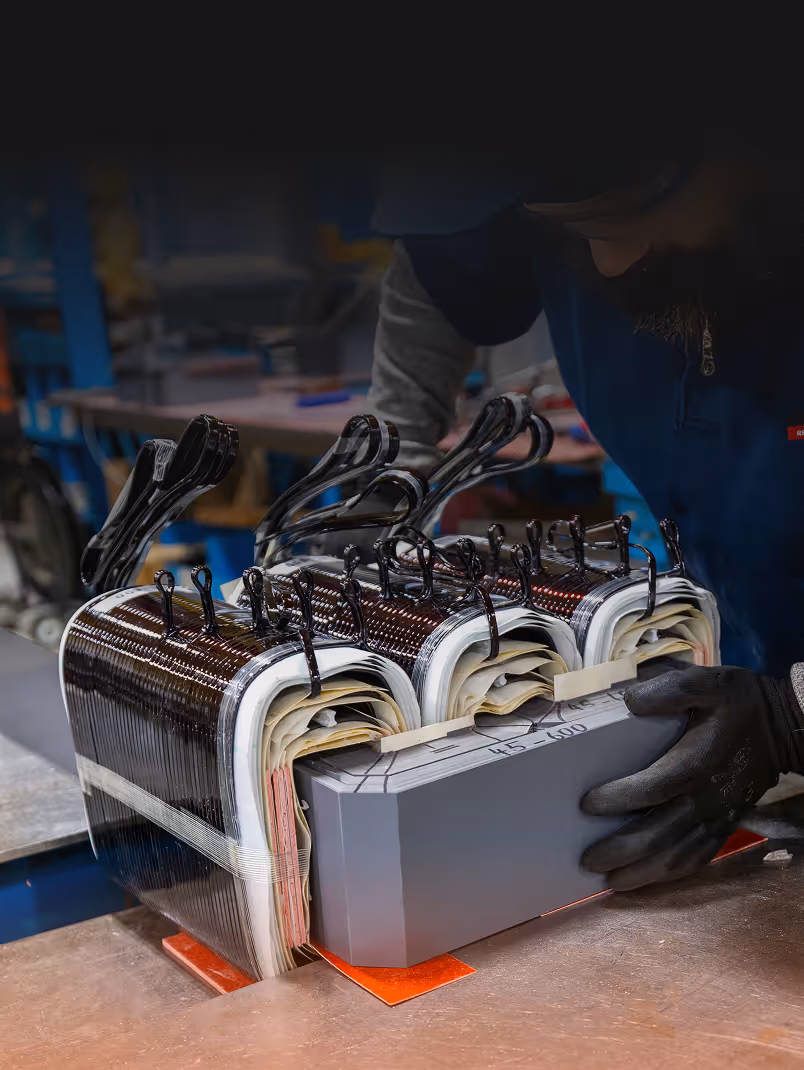

Dry-type transformers are grouped by how their windings are cooled and protected from the surrounding environment. The three most common types are ventilated, encapsulated, and non-ventilated transformers.

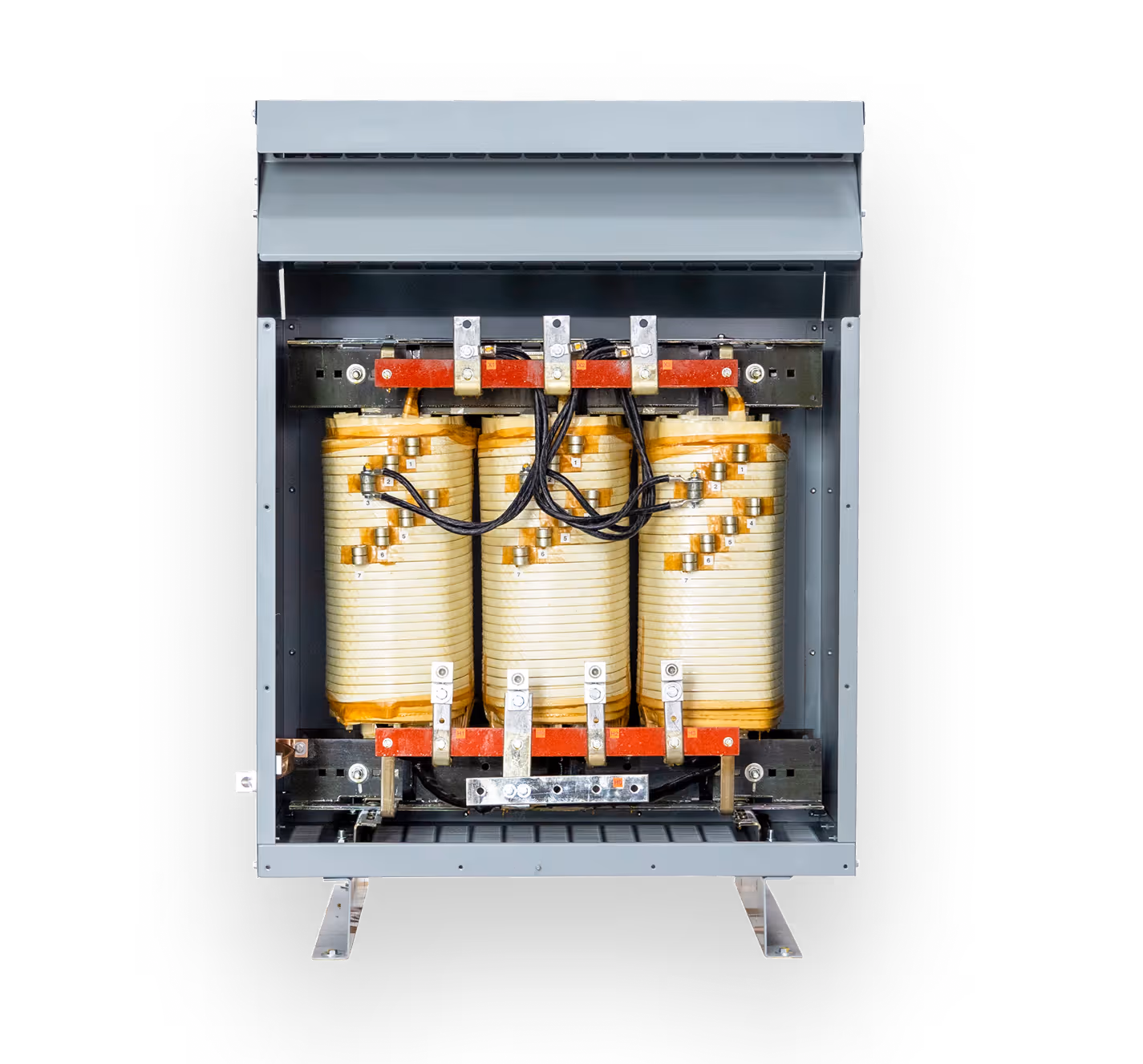

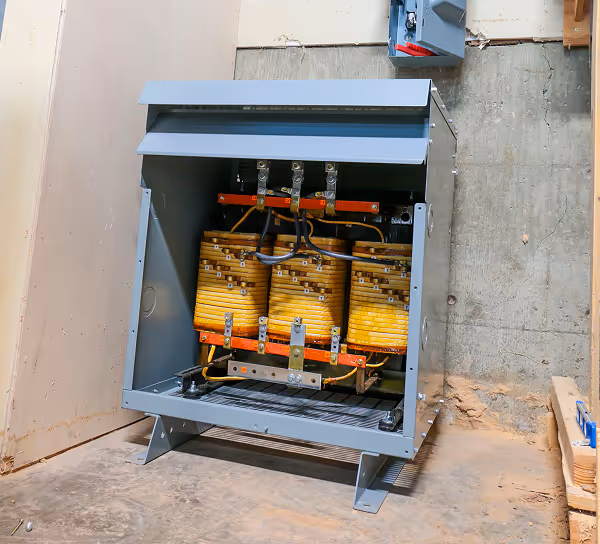

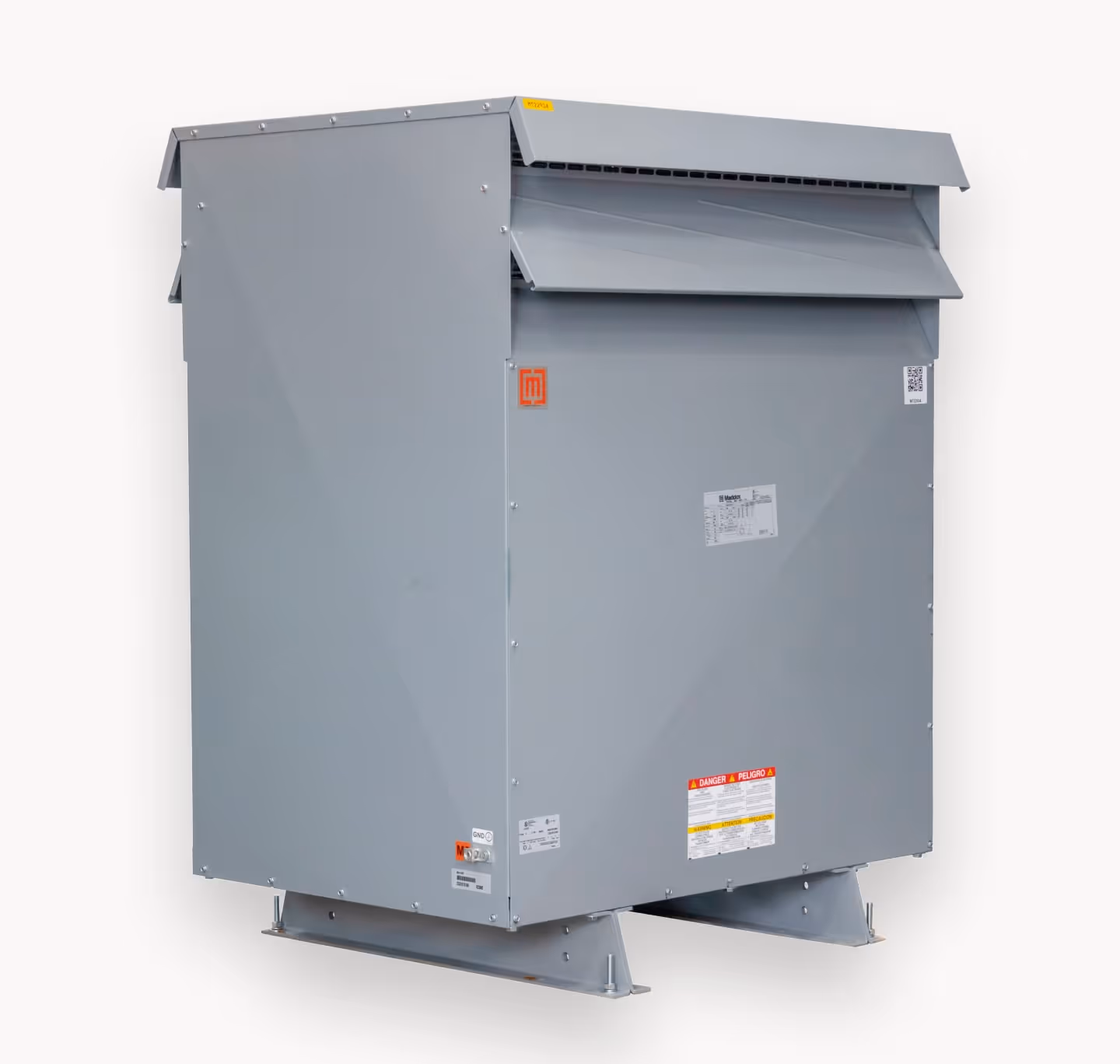

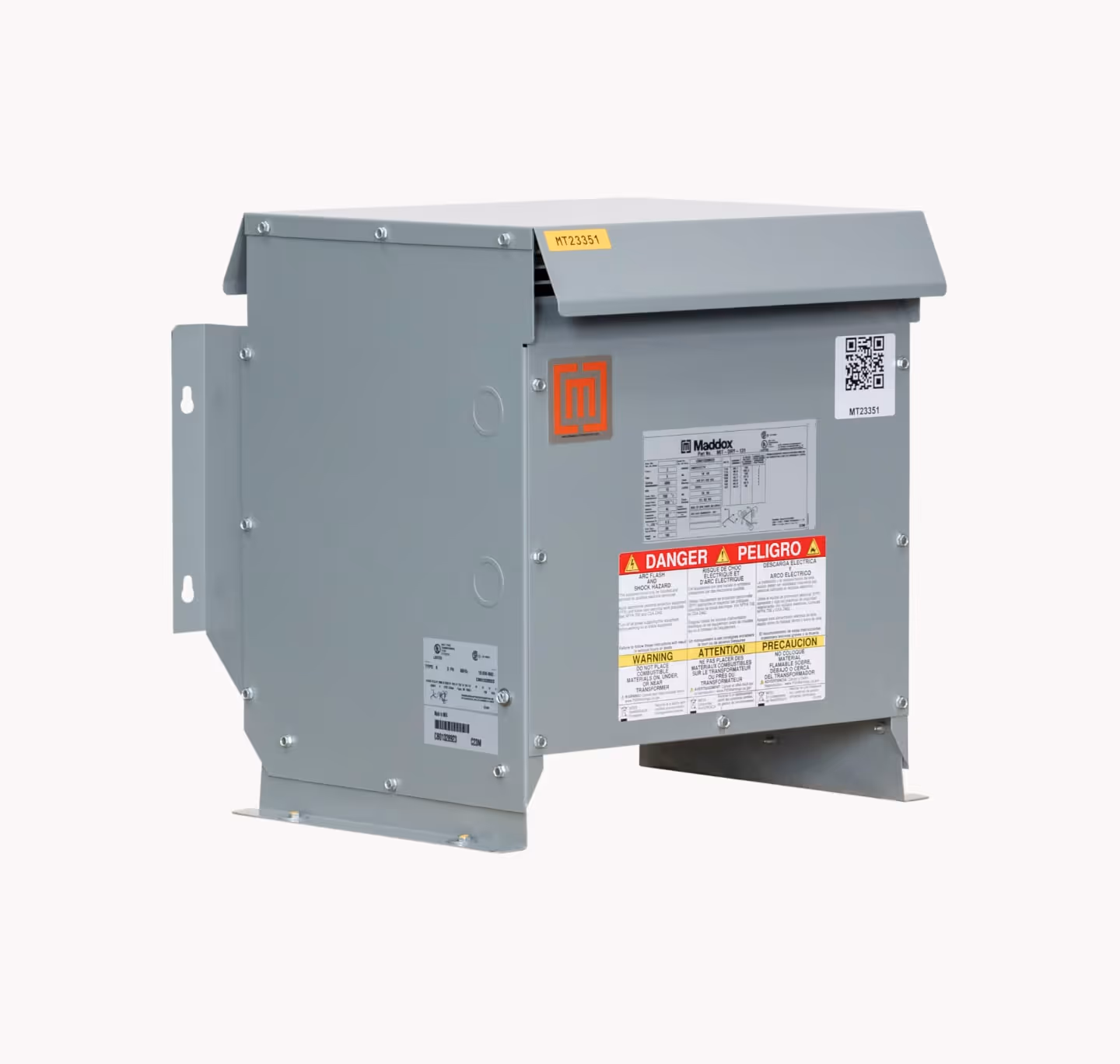

Ventilated: Ambient air circulates naturally around the core and coils. Encapsulated: Epoxy resin seals the coils against moisture, dust, and corrosive air. Non-ventilated: A sealed enclosure dissipates heat through the case where circulating air is not suitable.

Special dry-type designs include K-factor transformers for harmonic loads, drive-isolation and motor-drive transformers, and autotransformers for efficient voltage buck/boost applications where galvanic isolation is not required.
