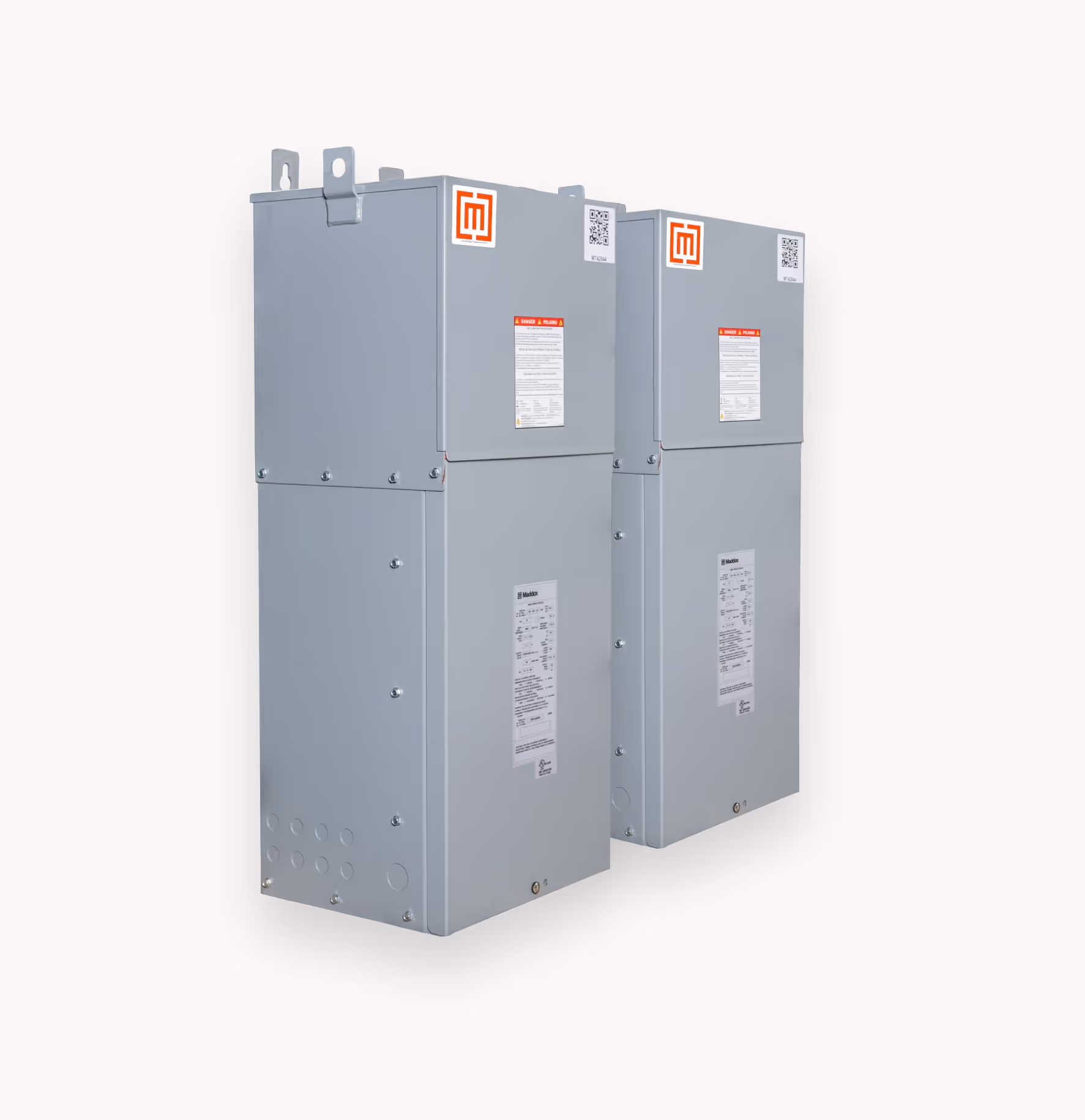

Mini Power Centers

Maddox mini power centers are the all in one solution for your low voltage power distribution needs. These units are ideal for industrial loads, EV charging, temporary power needs, or tunnel power needs.

Capabilities

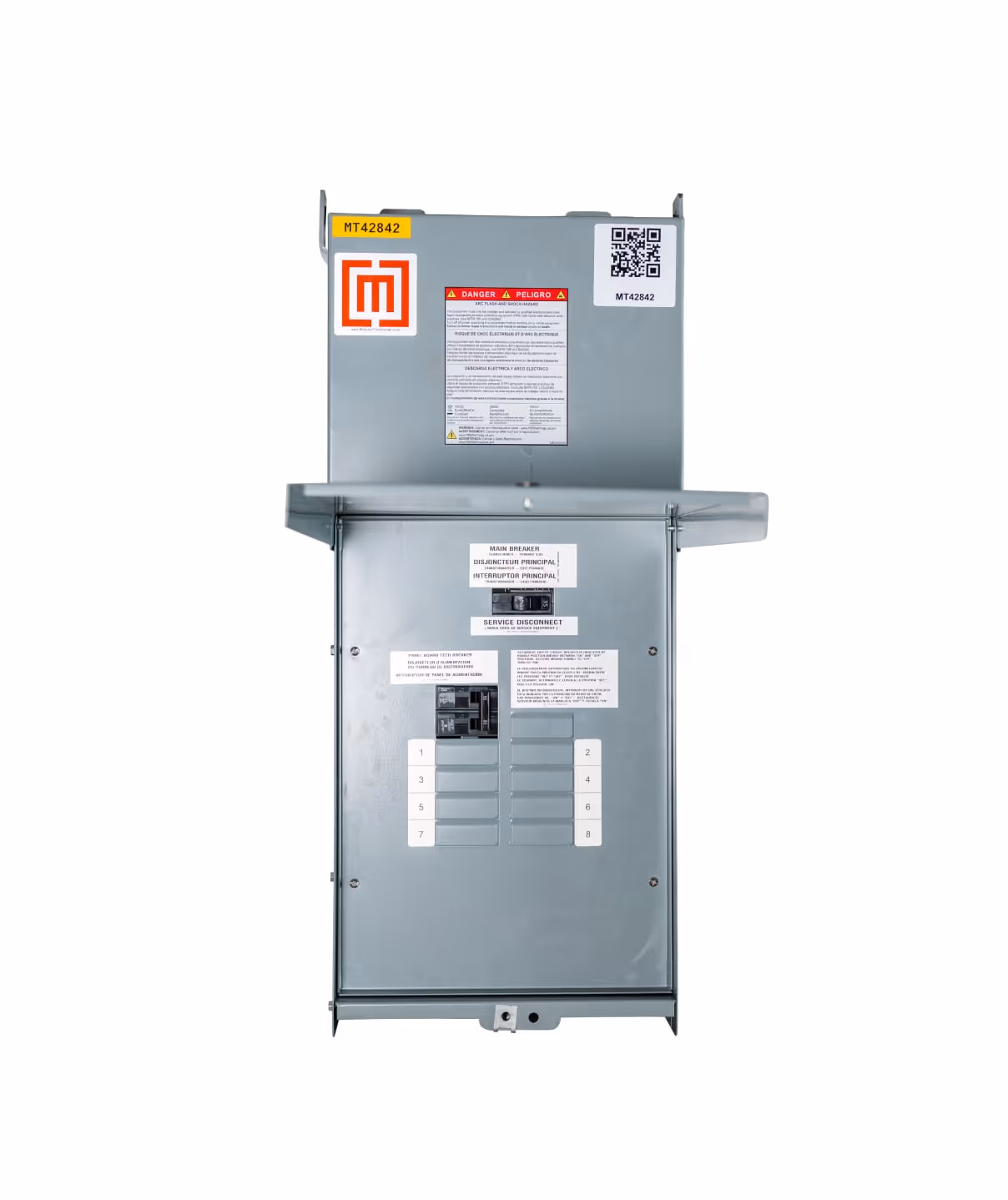

Maddox mini power centers combine a transformer, with a primary circuit breaker protection, and secondary main breaker distribution load center. These units save installation time and space by integrating these three components into a single rugged enclosure.

Mini Power Centers are used on low voltage distribution systems and loads requiring 120/240V single-phase.

Product Scope

  • 5 kVA – 25 kVA
  • Up to 600V

Technical Specs

Transformer

  • Encapsulated in polyester resin
  • Aluminum windings
  • 180° insulation class
  • 115° temperature rise
  • Meet NEMA, ANSI, & OSHA standards
  • Optional: Single electrostatic shield

Primary Breaker

  • Molded Case Circuit Breaker (MCCB) for primary side protection
  • 14 kA interrupting current capacity
  • Optional: 18 kA, 25 kA, and 35 kA interrupting current

Secondary Main Breaker Load Center

  • Molded Case Circuit Breaker (MCCB) for secondary side protection
  • Space for up to 30 secondary branch breakers
  • Neutral bar is grounded to enclosure

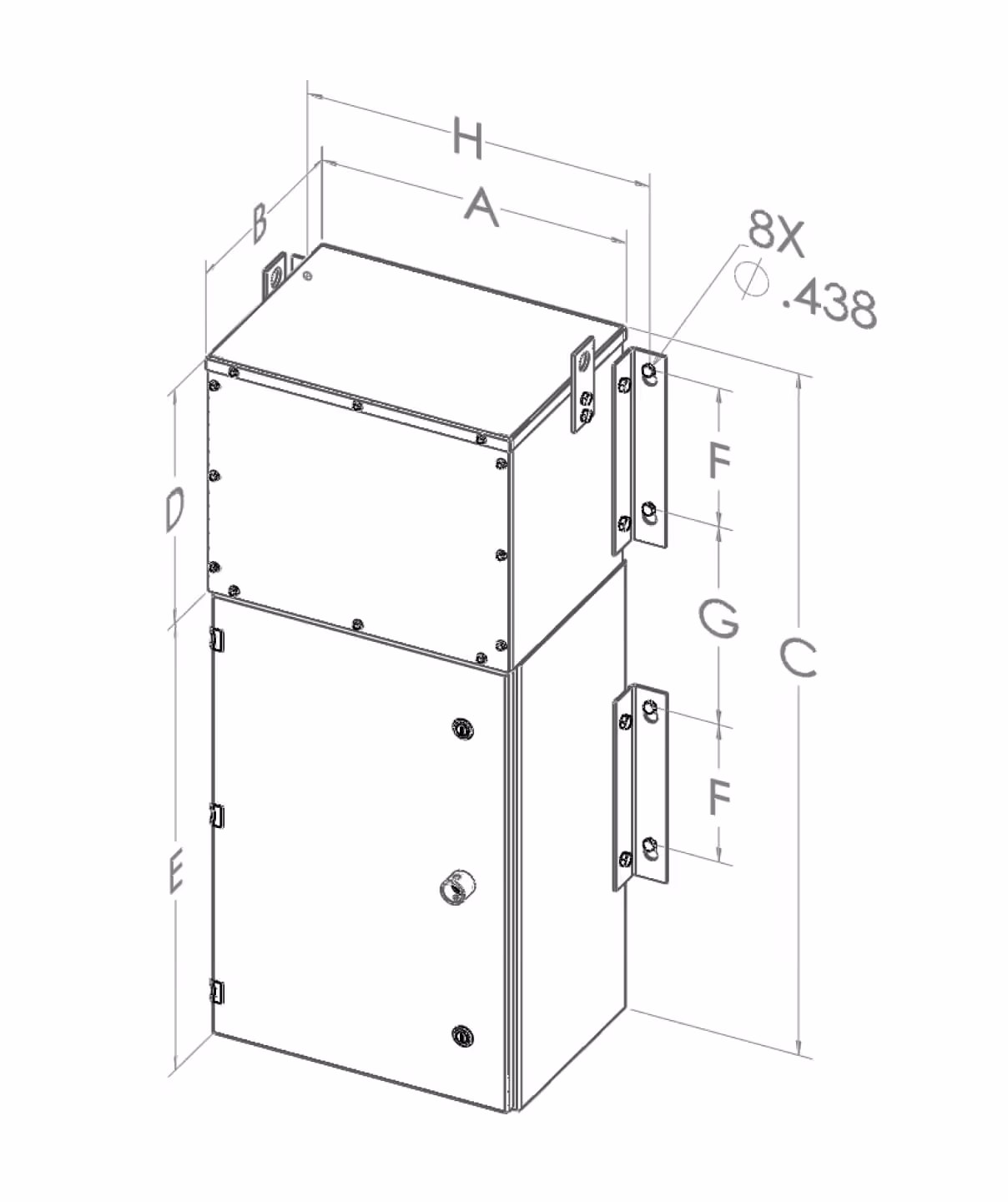

Enclosure

  • Wall-mounting
  • Padlockable quarter-turn for panel
  • Floor mounting brackets or provisions
  • NEMA 3R indoor/outdoor
  • Optional: Stainless Steel
