Pad-Mounted Switchgear

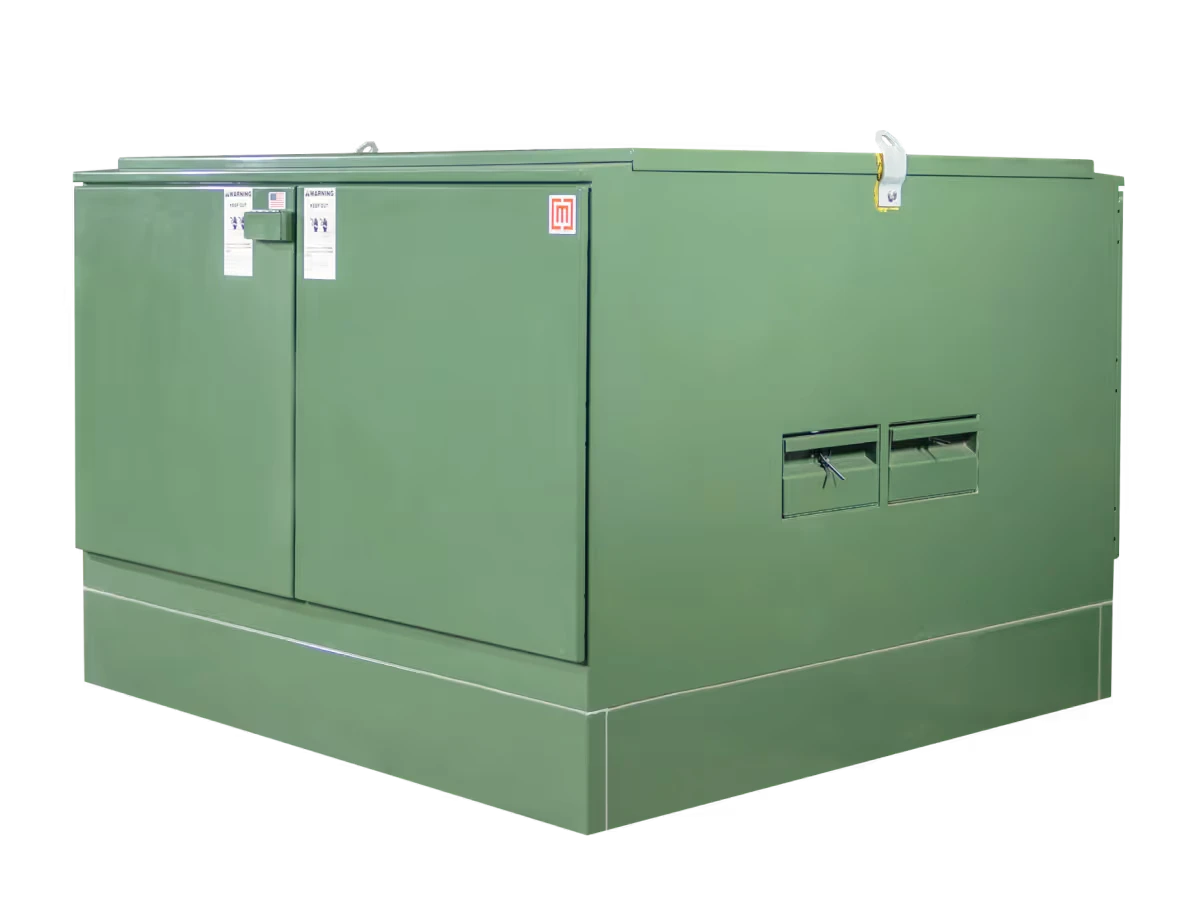

Pad-mounted switchgear designed for underground switching and fusing protection for the distribution grid. With a low-profile lockable tamper proof design, these units are perfect for outdoor public installations.
Switchgear Specifications
Voltage: Up to 35 kV
Maddox tamper-proof, pad-mounted switchgear are designed, built, and tested in accordance with the highest industry standards including: UL listed and IEEE C37.74. They feature up to four bays with multiple switch and fuse configurations available.
Standard Features
- Double-door design
- Nominal: 14.4 kV
- Maximum design: 15.5 kV
- BIL: 95 KV
- Main bus continuous: 600 amps
- Load interrupting: 600 amps
- Short-circuit withstand current (Sym.): 25 kA
- 3-time fault-close (Asym.): 40 kA
- Frequency: 60 hertz
- Maximum altitude: 3300 feet
- Fuse unit: type DBU, 15 kV, standard speed (E)
- Munsell green hi-gloss finish suitable for heavy-duty applications
Optional Upgrades
- Live-front designs
- 6 compartment option (up to 5 switch & 5 fuse arrangements)
- 25 kV designs
- DBU fuse speed variations: slow “E” and “K”
Same Day Quotes
Price and lead time today
3 Year Warranty
Backed by US-based support
USA Options
Made-in-America available
Hit Your Lead Time with Stock and Custom Options
Maddox keeps substation transformers in stock for fast deliveries and builds custom ones with some of the best lead times in the industry.
Stock
Hit project deadlines with common kVA sizes and voltages, in stock and ready to ship.
Custom
Build exactly what you need with extensive switchgear customizations available.
See How We Earned +800 Five Star Reviews
Maddox pad-mounted switchgear provide reliable power to critical projects across the United States.
Get a Quote in Minutes
Fill out the form and we will get back to you as soon as possible. Our average response time during business hours is 30 minutes.
Meet Any Spec with Extensive Customizations
Meet your exact spec with customized transformers designed, built, and tested in accordance with the highest industry standards including NEMA, ANSI, DOE, and IEEE as applicable.

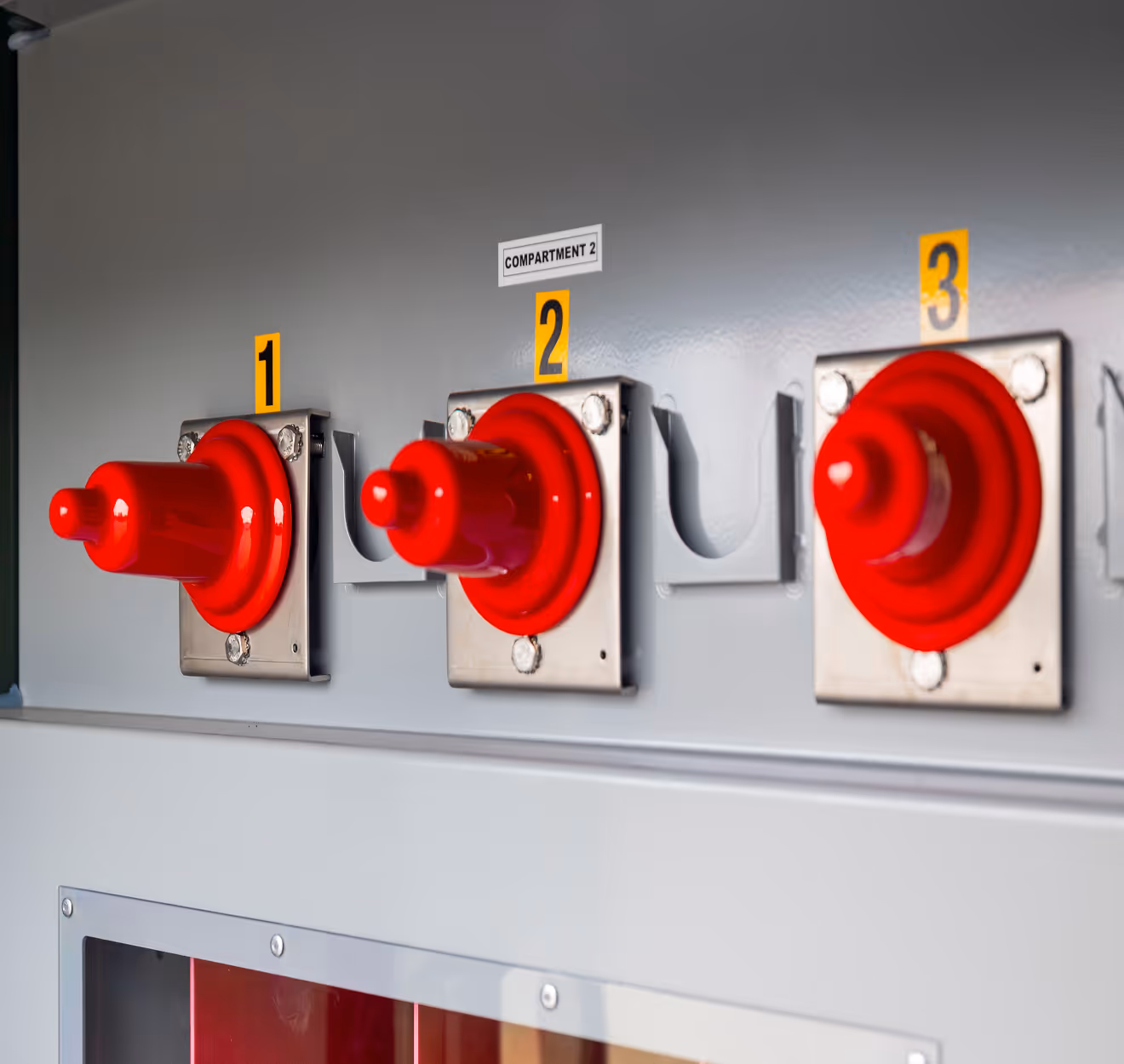

Live Front Designs
Live Front Designs

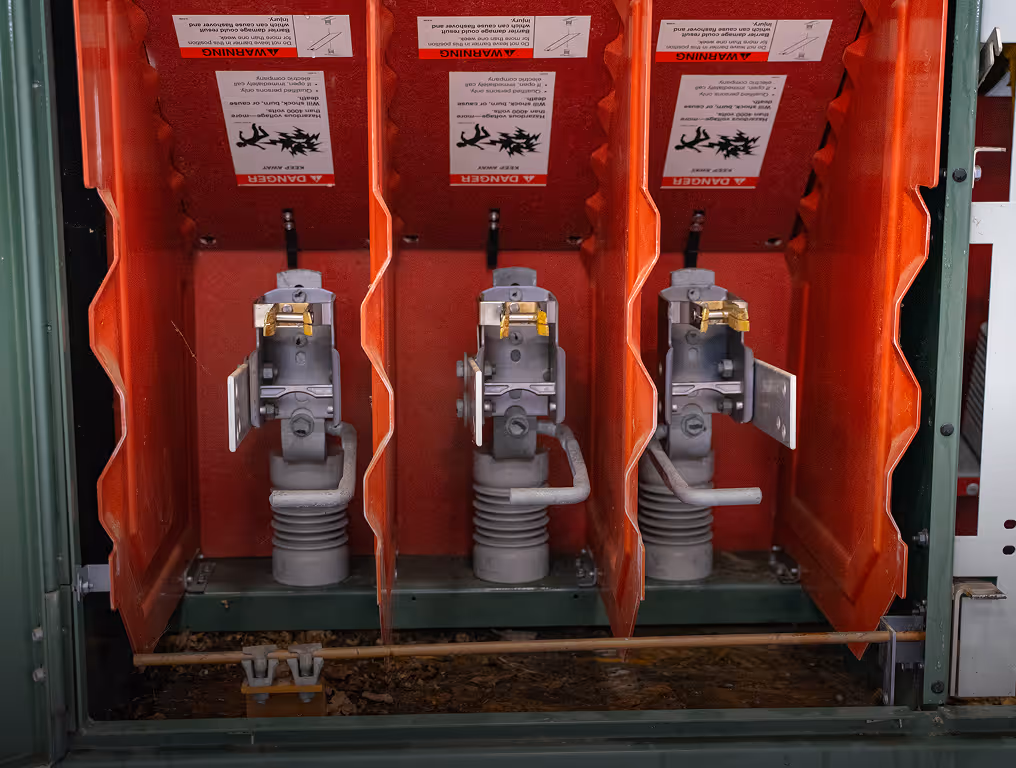

Live front designs feature exposed energized components inside the cabinet, allowing for direct cable connections in a compact design.

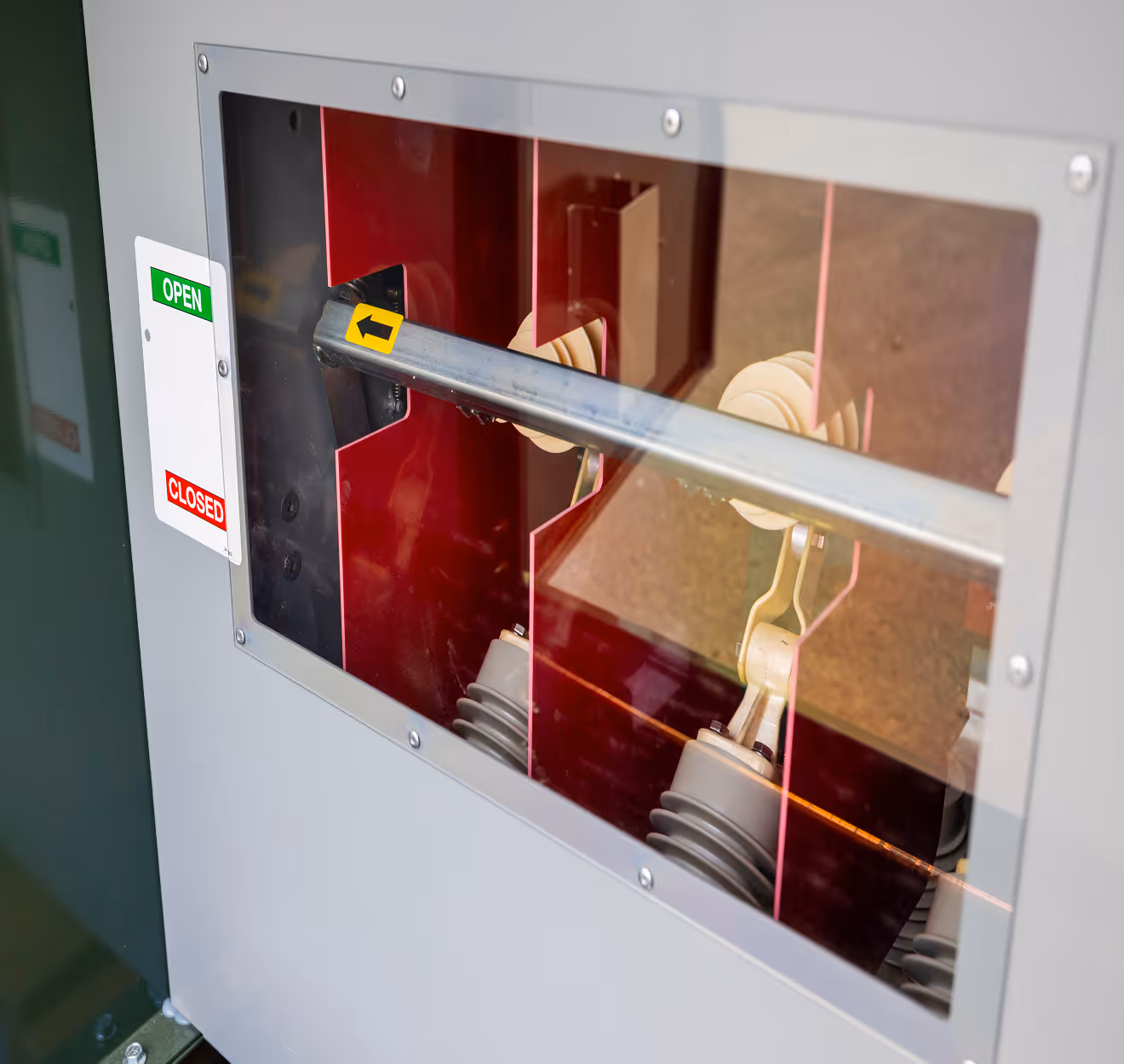

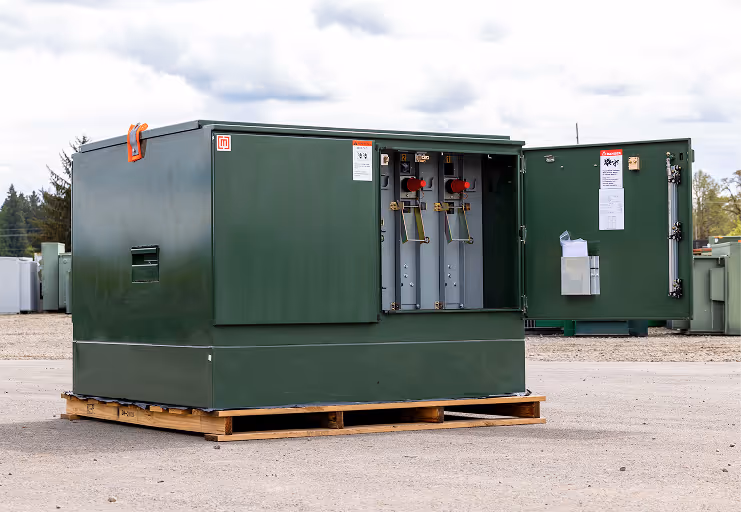

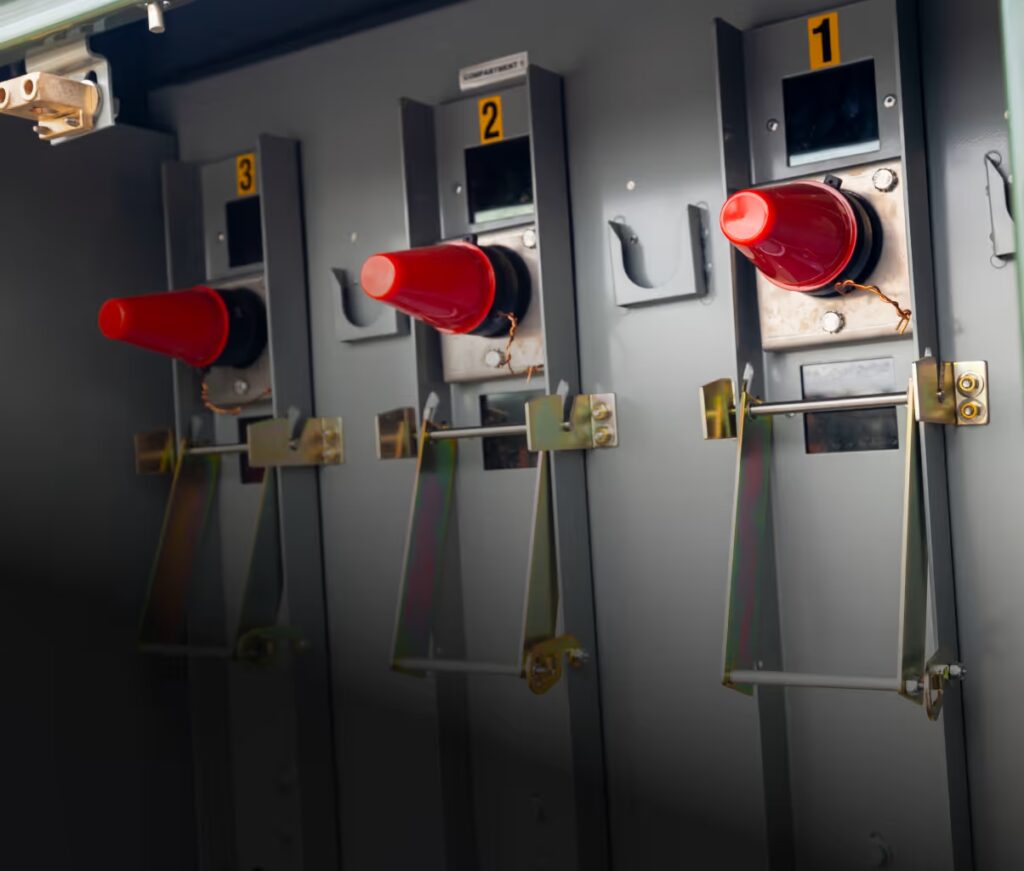

Double Door Design
Double Door Design

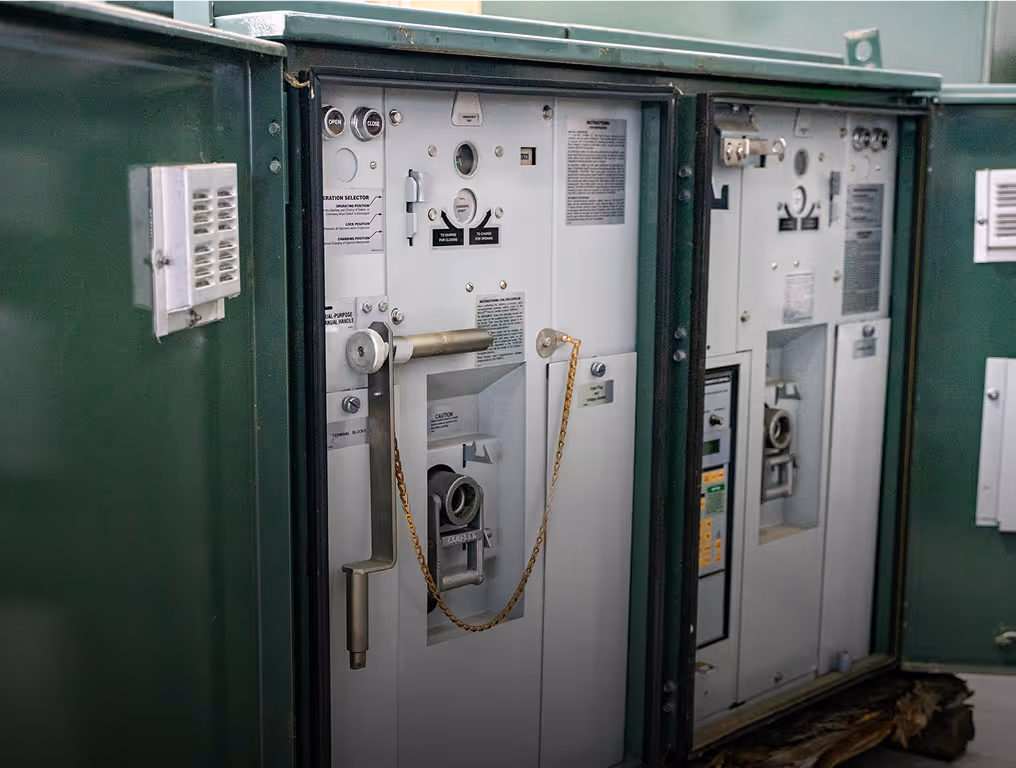

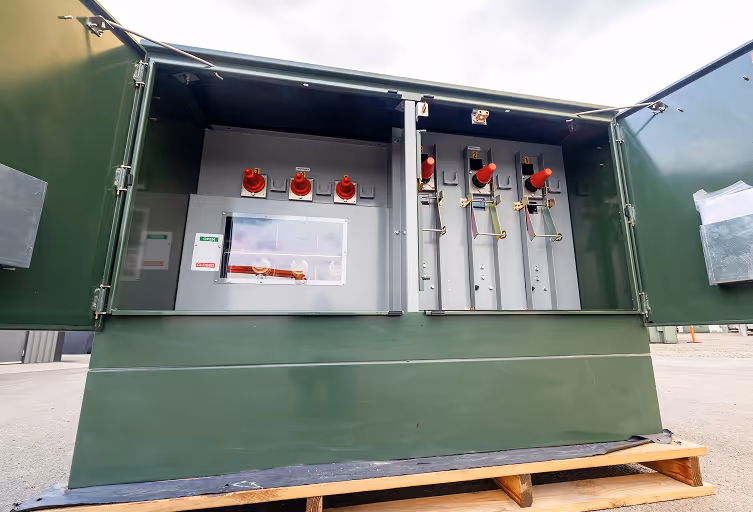

Double door pad-mounted switchgear provides separate front compartments for cable access and switch operation, improving accessibility for installation, maintenance, and operation.
DBU Fuse Unit
DBU Fuse Unit

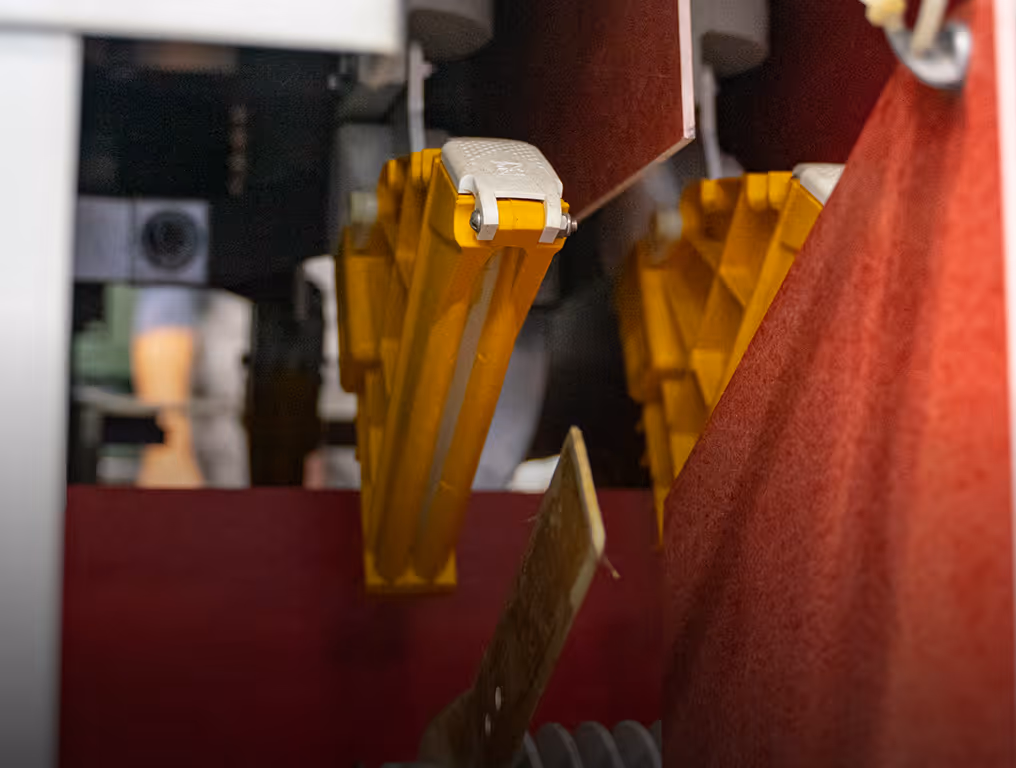

A DBU fuse unit provides system protection by isolating fault currents before equipment damage can occur, commonly used where fused protection is required.
Frequently Asked Questions
Stock Amp Switches
Do you stock 1200 amp switches?
No, Maddox stocks 600 amp 5 and 15 kV switches and 200 amp 5kV mini switches. Maddox offers 1200 amp switches, but they are made-to-order.
PME Equivalency
Are these equivalent to PME designs?
Yes, stock Maddox pad-mounted switchgear units are equivalent to standard PME designs. Let your rep know which ME design you need and they’ll provide an equivalent option.
15kV Switch Fuse
Do standard pad-mounted 15kV switches offer fusing above 200amps?
While the switch is rated for 600 amps, fuse manufacturers of common SMU-20, DBU, and CMU fuses do not manufacture sizes above 200 amps, so the industry is limited to 200 amps for this type of fusing which is used in standard pad-mounted designs.
Lead Time
How soon can you ship a Maddox pad-mounted switchgear unit?
Because Maddox stocks switchgear across the United States, we have many ready-to-ship units available. If you need a custom design, request a quote to receive pricing and lead time within 30 minutes.
American Made
Does Maddox stock American-made pad-mounted switchgear units?
Yes, Maddox stocks American-made pad-mounted switchgear. If your project requires BABA compliance, please notify your sales rep.
Returns & Exchanges
Can I return or exchange a Maddox pad-mounted switchgear unit?
Yes, Maddox pad-mounted switchgear units may be eligible for return or exchange within six months of shipment date. Terms and conditions apply. Learn about the Maddox return and exchange policy here.
