Transformers for Solar Projects
We have the transformers you need to power on your next renewable project, built specifically for solar, step-up applications.

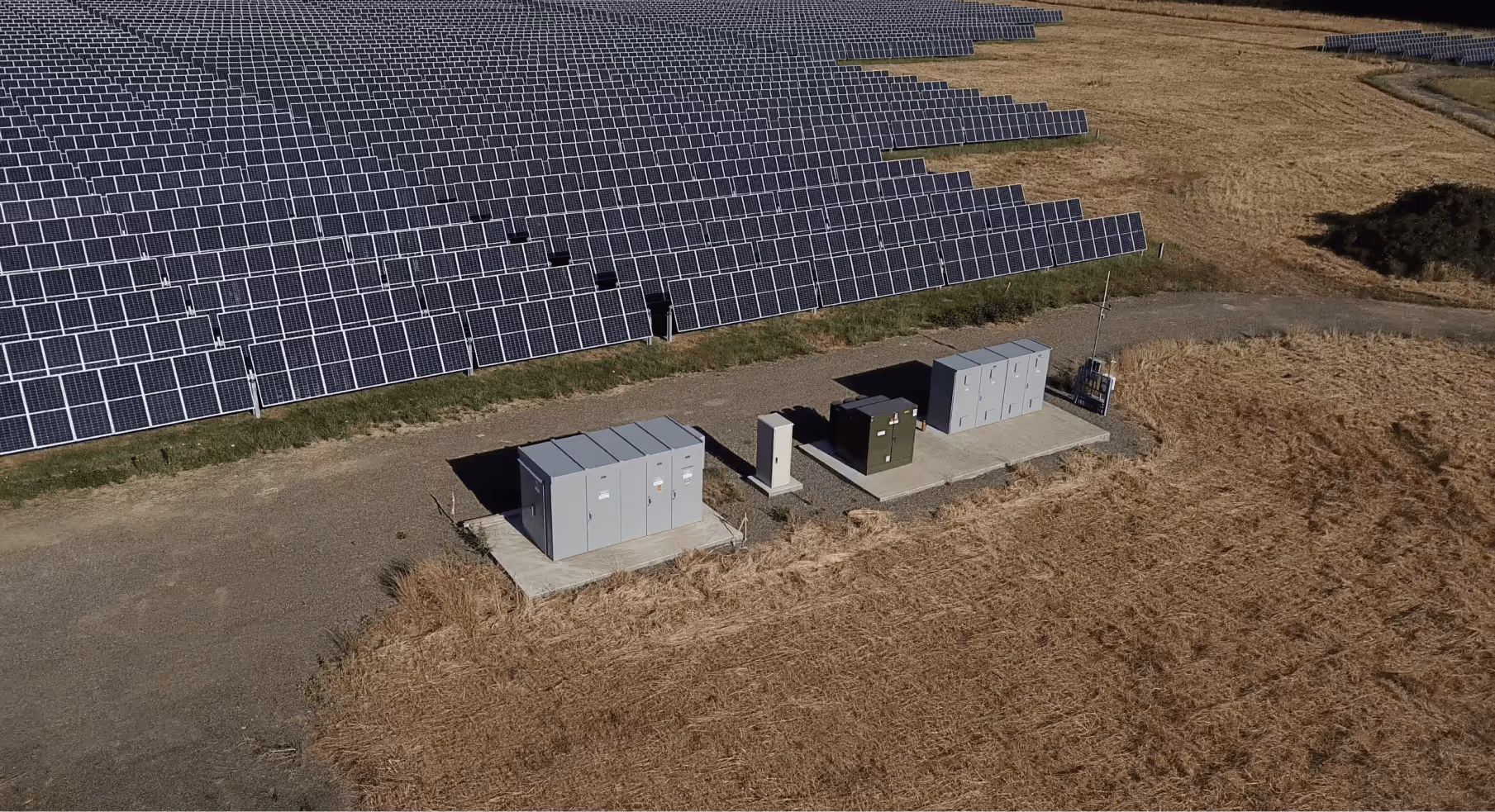

Solar Transformers Installed

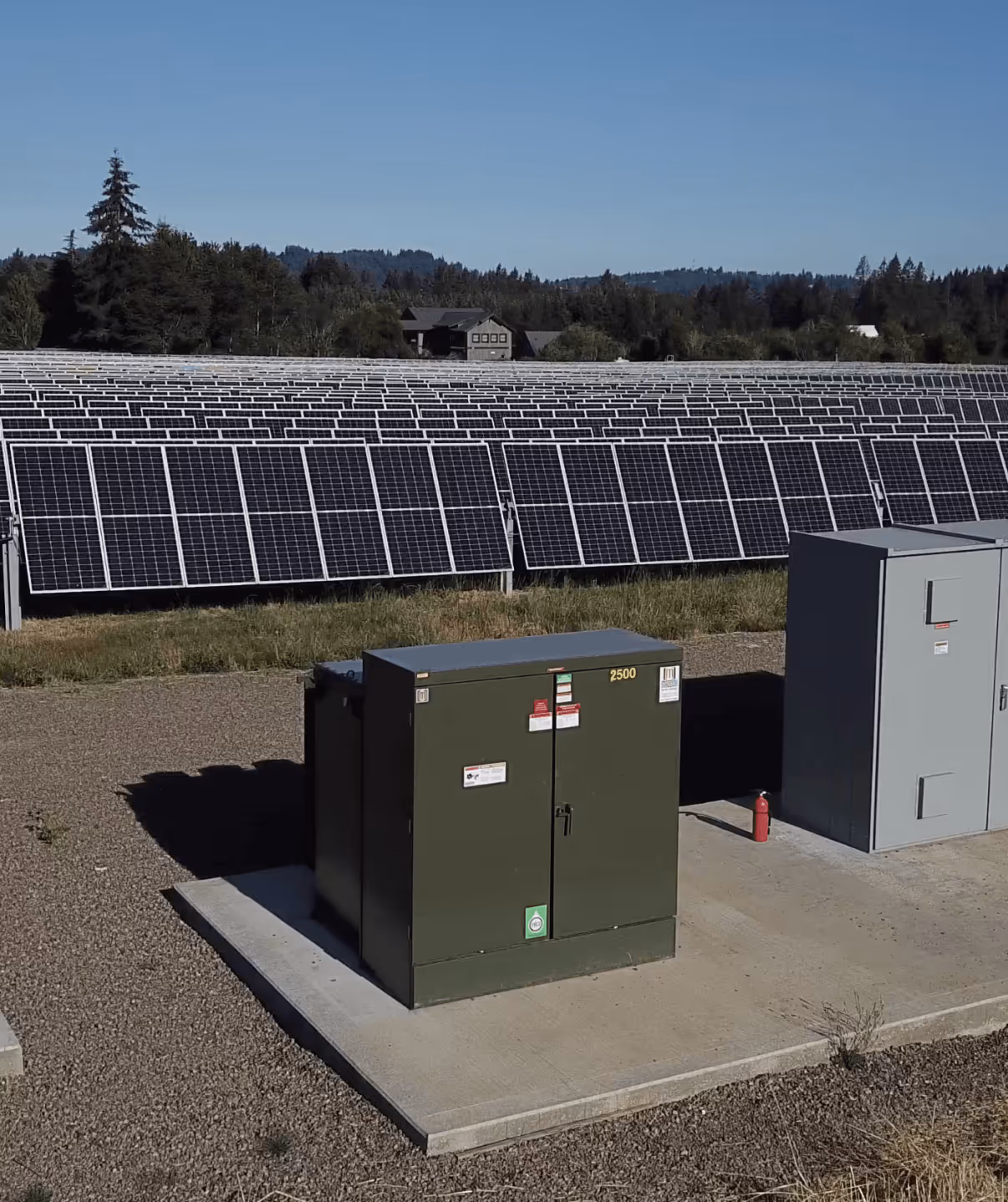

This 2500 kVA padmount (12470GY/7200 – 600Y /347) is one of three Maddox transformers at this solar farm in Oregon.
Solar Transformers
Maddox stocks liquid-filled and dry-type transformers for solar projects. If we don’t have what you need in stock, we can have it built for you with the shortest lead times in the industry.

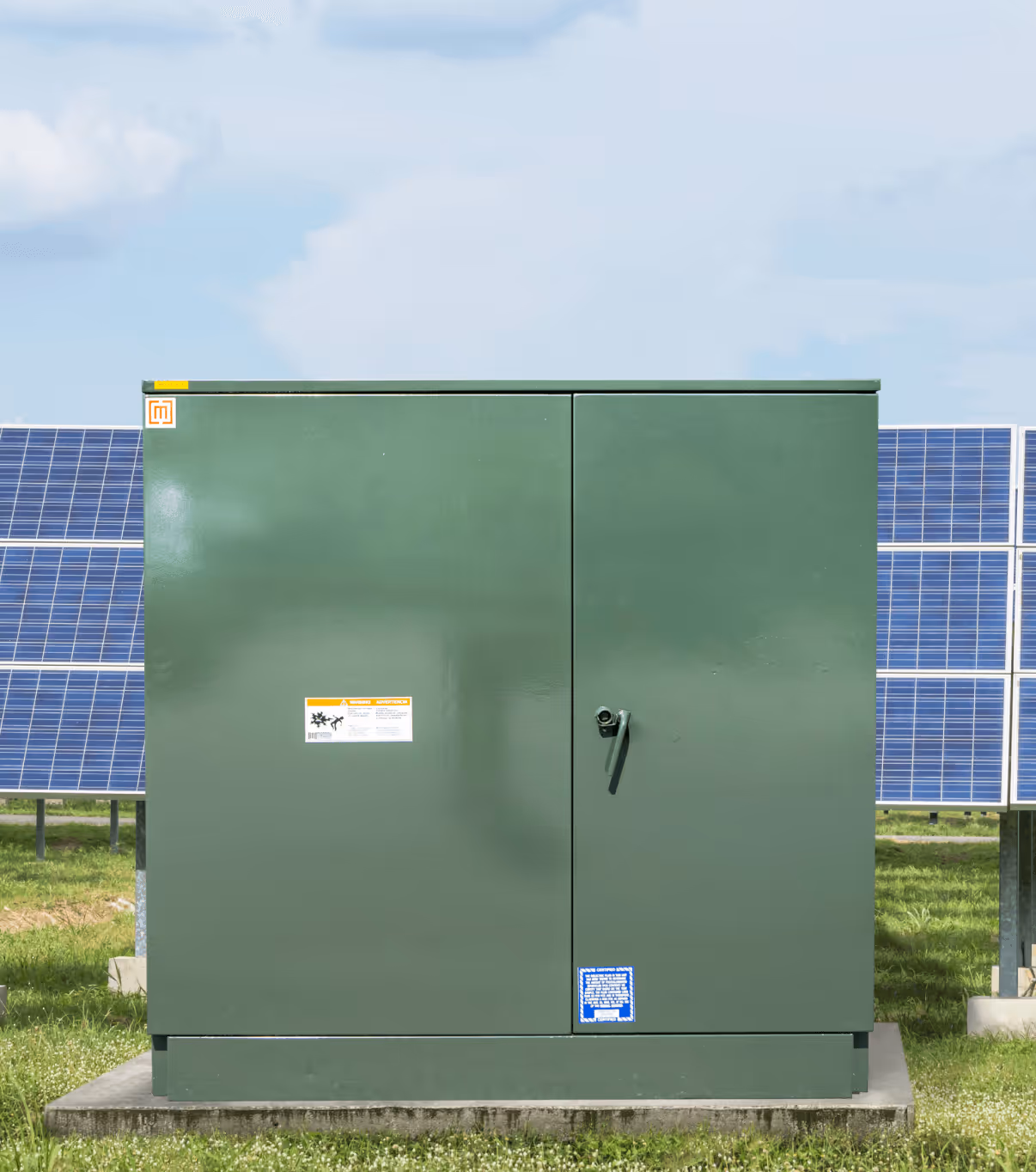

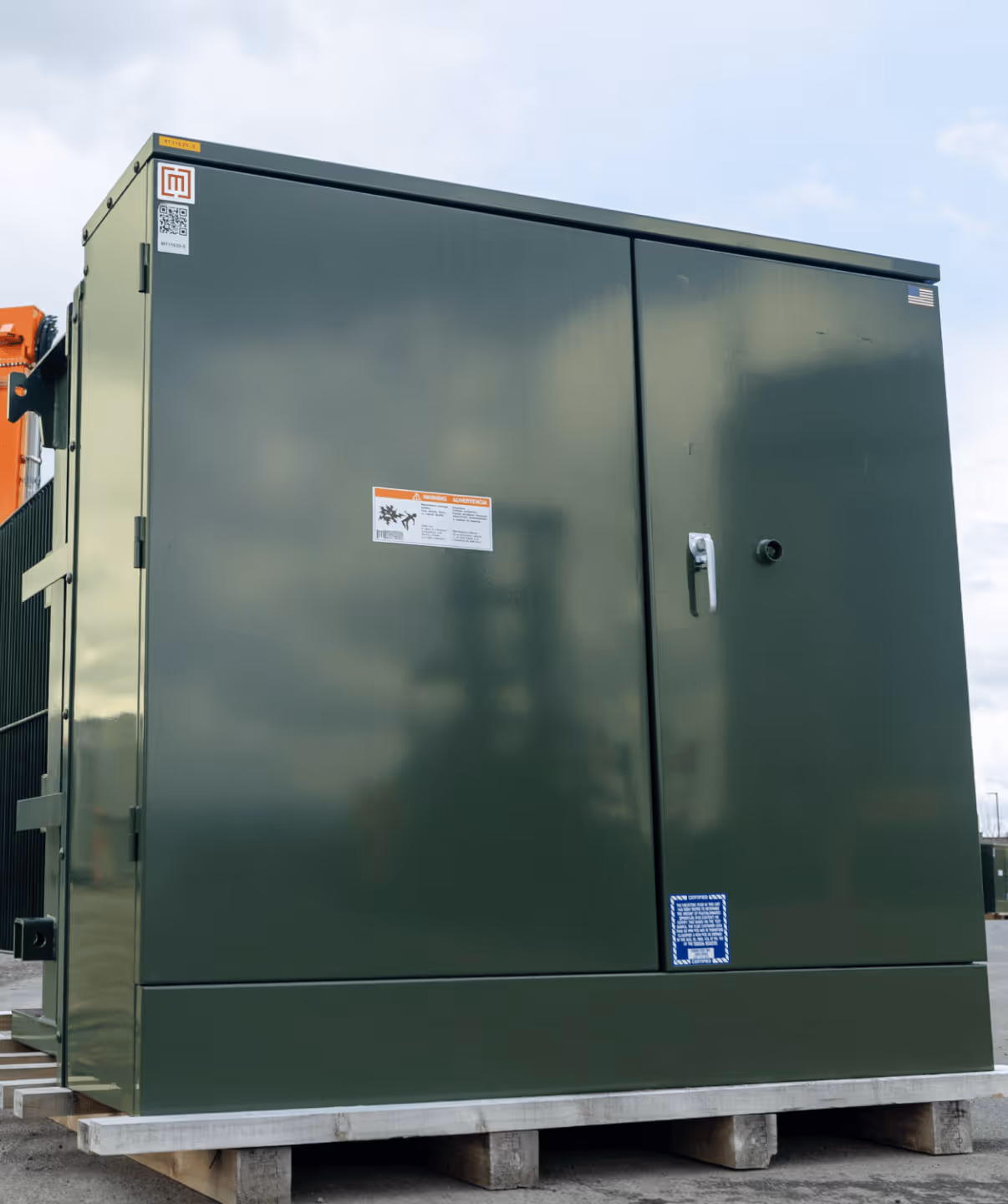

Padmount transformers designed for solar applications
- K rated options for harmonic mitigation
- Suitable for step-up Operation
- Electrostatic shielding (E-Shield)
- Bio-degradable FR3 Fluid
- Wye Wye connected windings
- Bayonet & current limiting fuses
- LBOR switching
- Separated neutral bushings
- Gauges with alarm contacts
- Remote monitoring
- Inverter compatible
- Surge arrestors

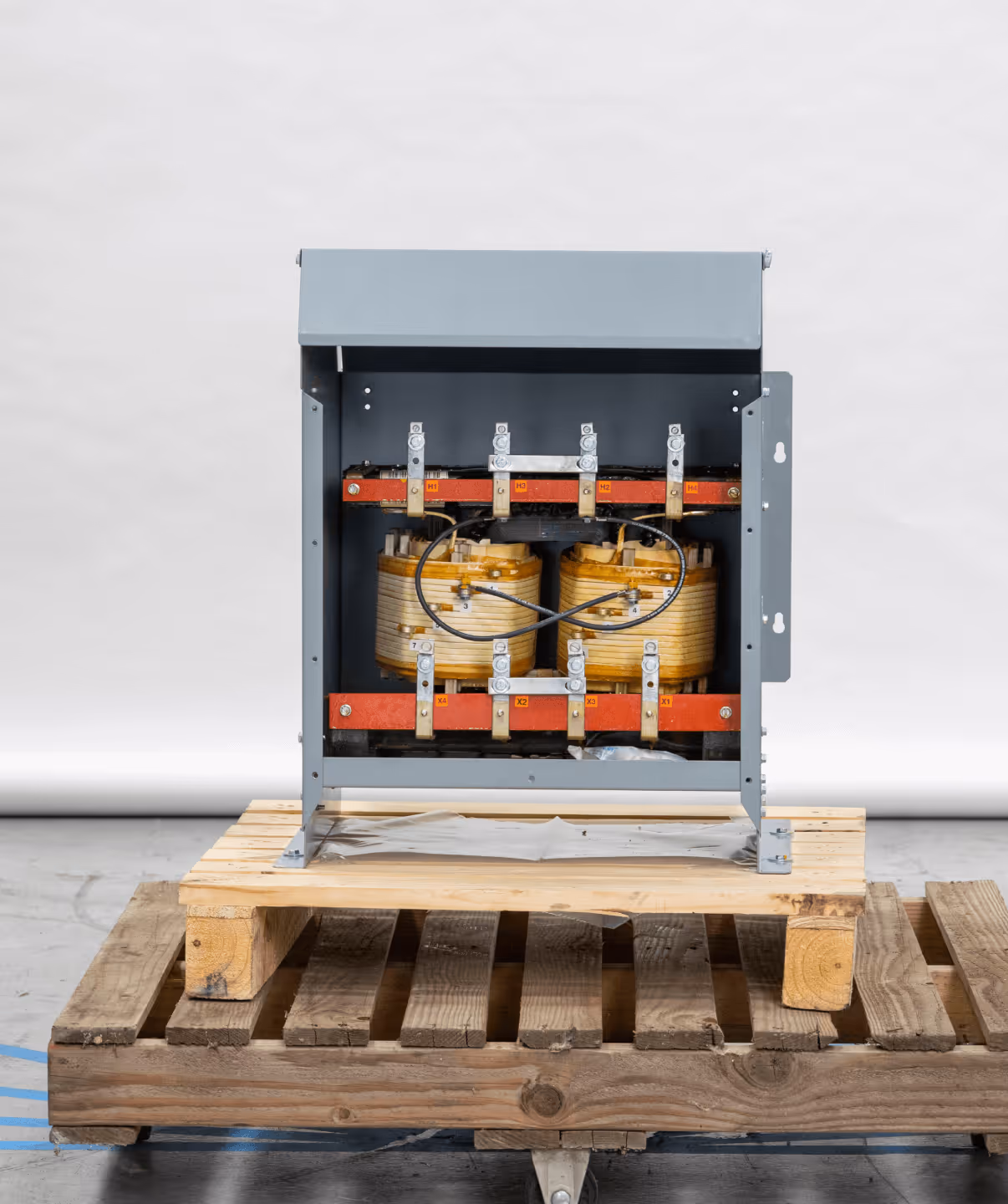

Low-voltage dry type transformers designed for solar applications
- 5 Legged core or tertiary winding
- Electrostatic shielding
- Suitable for step up operation
- Solar Rated Dry-Type transformers
- kVA: 15 – 3000 kVA
- Voltage: 100v – 800v (Configurable in Delta or Wye)
- K Rating: K1-K20
